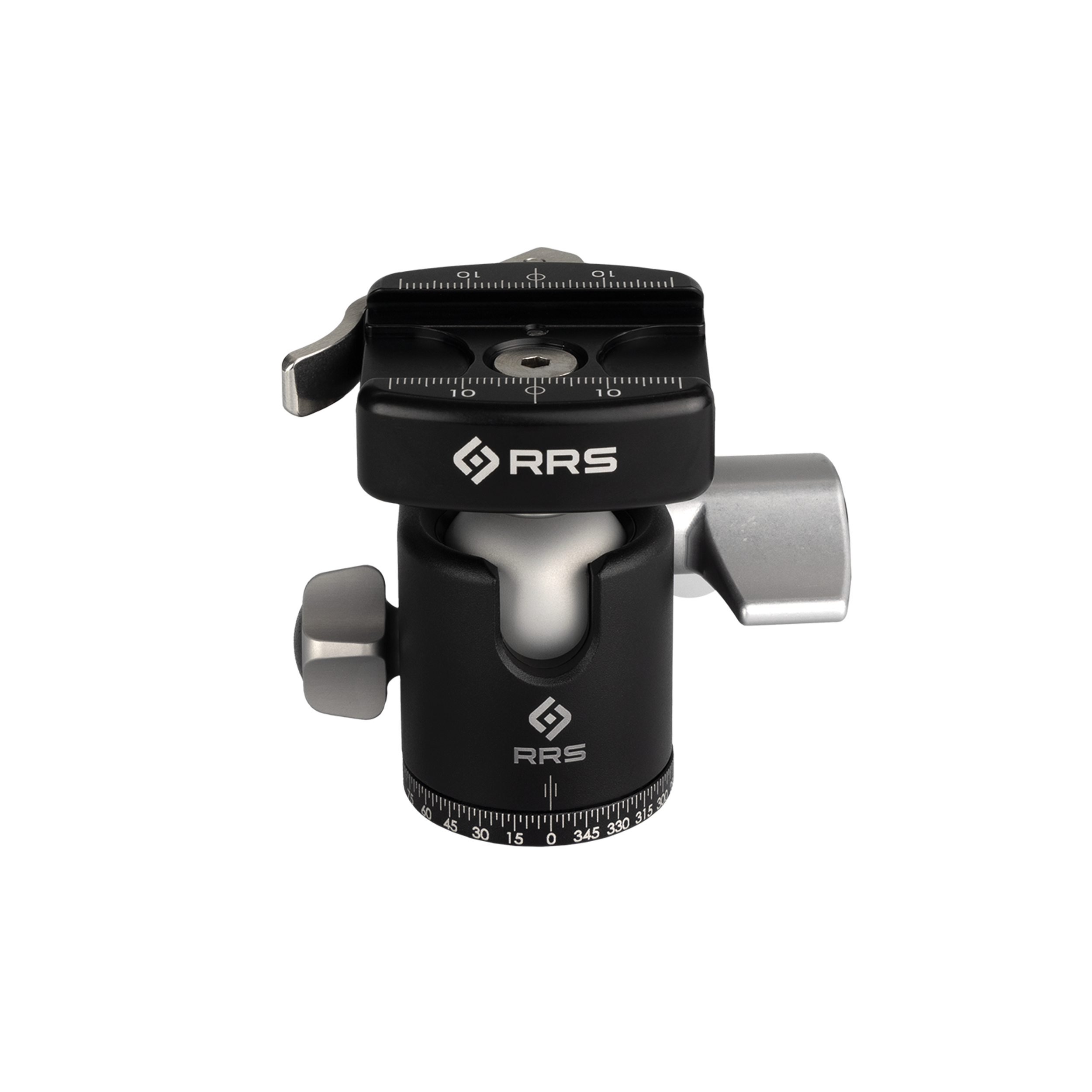

BH-30 Ball Head

Overview

Details BH-30 Compact Ballhead Overview A RRS ball head is the best choice for all general photography and will give you fast and accurate control and solid support of your camera or lens. Aiming and horizon leveling can be accomplished as one instinctive motion and rigid lockup takes just a quick twist of one control. As a result, our ball heads are faster to use and inherently more stable than 3-axis pan-tilt tripod heads. Since the ball head profile is smaller and lacks protruding handles, they are much easier to carry and pack.

These are no-nonsense heads with robust capacity, offering minimal weight and elegant simplicity. They excel as ground-level macro tools and as super light heads for backpacking, travel, and tabletop use.

Comes packed in its own padded Cordura protective draw-string pouch. Use the pouch to cover and protect the ball head when mounted to the tripod, for carrying the ball head in your carry-on luggage when traveling, or when the ball head and tripod are strapped to a photo backpack.

Features

• Ergonomic design gives superior handling and unsurpassed reliability
• 1/4-inch tapped stem
• 30mm diameter ball is hollow
• Single drop notch
• Knob and lever are captive and uniquely shaped
• Exclusive drum and symmetrical progressive band brake securely locks panning base
• Panning base is laser-engraved at 2.5 degrees intervals, zero to 360-degrees
• All components are either anodized aluminum or stainless steel for years of corrosion-free performance
• Spring-loaded lock knob can be repositioned

Specs

Country of Origin: USA

• • Load Capacity: 15lbs / 6.8 kg
  • Base Diameter: 1.6" / 40 mm
  • Ball Diameter: 1.2" / 30 mm
  • Tripod Mount: 3/8"-16

  Clamp Choice:	LR	LR II	PCLR40	Pro	Pro II	No Clamp
  Height	3.0" / 75mm	2.9" / 75mm	3.5" / 89mm	2.9" / 74mm	2.9" / 75mm	2.4" / 61mm
  Weight	11.2oz / 318g	13.0oz / 369g	13.4oz / 380g	10.0oz / 280g	12.1oz / 383g	7.7oz / 218g

  In the Box

  • (1) BH-30 ball head with Quick-Release Clamp of choice
  • (1) Padded Cordura pouch with drawstring closure
  • (1) 5/32" hex key (required to remove/replace clamp)
  • (1) ¼"-20 x 3/4" stainless steel flat head mounting screw
  • (1) QR-Code Reference Card for User Manual
