L85: Universal Lens Foot

$75.00

Upgrade your setup with Really Right Stuff lens plates. Precision machined from solid aluminum for collared telephoto lenses. Compatible with RRS Dovetail quick-release systems.

SKU:
L85 Plate
UPC:
818413027121
Adding to bag… The item has been added

Details

Overview

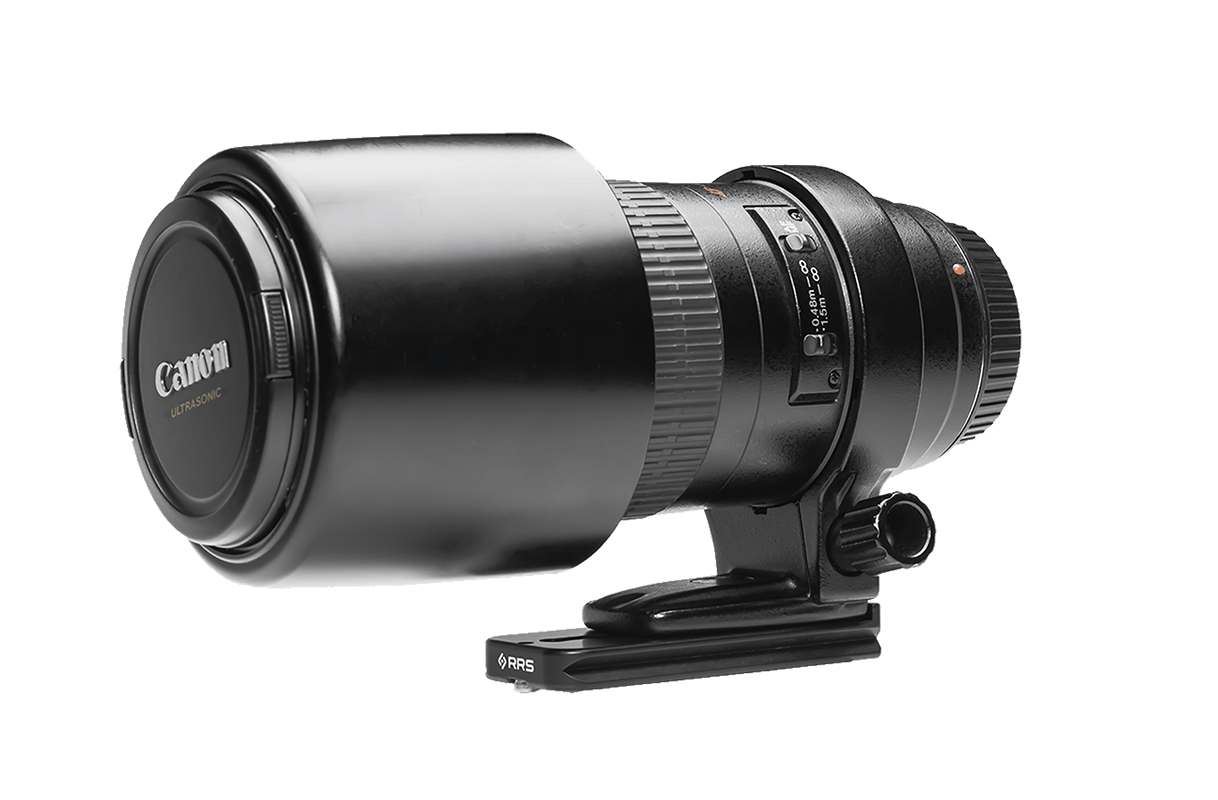

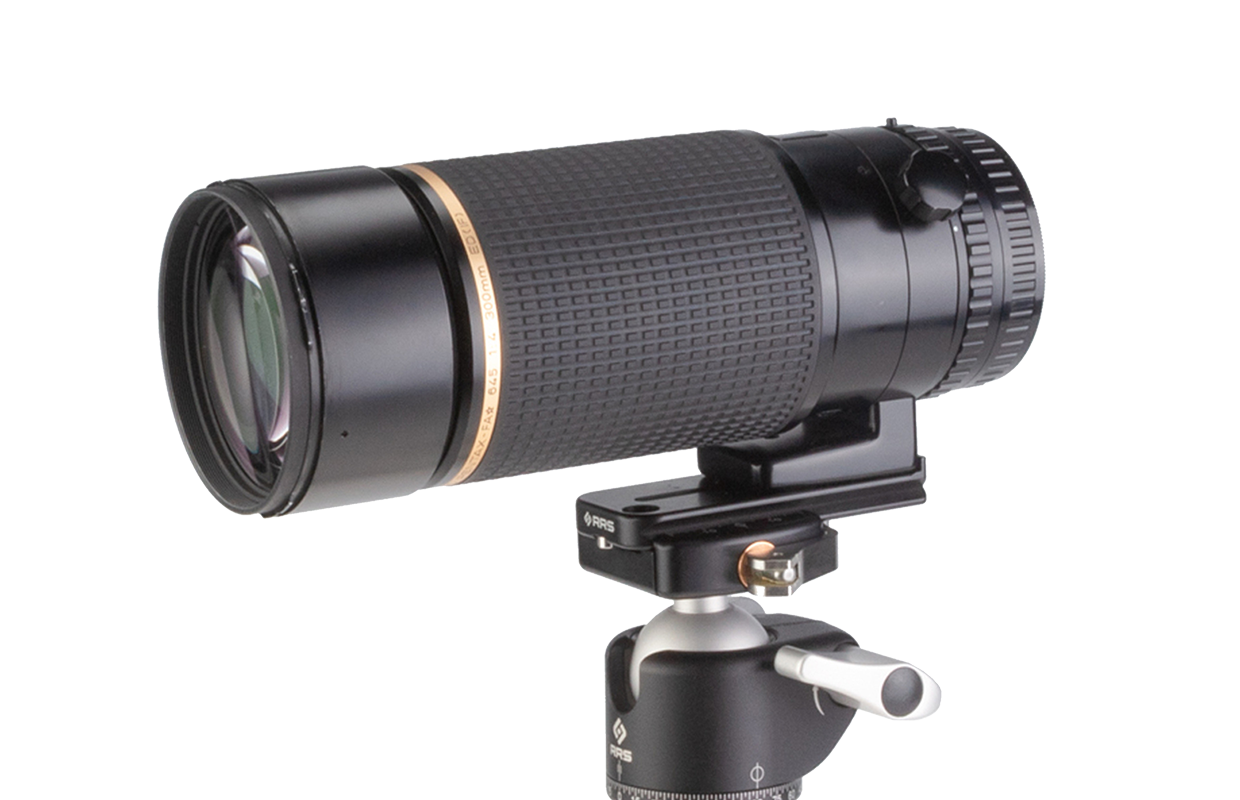

Really Right Stuff lens plates are designed for collared, telephoto lenses and precision machined from solid blocks of 6061-T6 aluminum. Fully compatible with any RRS Dovetail style quick-release system, our plates feature simple square anti-twist flanges for a perfect fit that prevents twisting between the lens foot and our plate. This quick-release plate utilizes a custom machined 1/4"-20 threaded, captive-style mounting screw that threads into the tripod mounting socket of your lens foot.

*The L85 lens foot is compatible with most lenses (current and discontinued).

Features

  • CNC machined 6061-T6 Aluminum
  • Anodized; Type II Black
  • 1.5” RRS Dovetail top and bottom
  • Safety Stop screws on both ends
  • Captive1/4”-20 mounting screw
  • Slot provides 2.5” (63.5mm) of adjustment
  • 1/4"-20 threaded accessory mounting socket
  • QD (Quick Detach) socket
  • R-Lock incorporation

Specs

Country of Origin: USA

  1. Height: 0.52"/ 13.2mm
  2. Length: 3.60"/ 91.4mm
  3. Width: 1.50"/ 38.1mm
  4. Weight: 1.68oz/ 47.5g

In the Box

  1. (1) Multi-use lens foot
  2. (1) Custom 1/4"-20 captive screw
  3. (2) M3 safety-stop screw
  4. (1) 5/32" hex key
  5. (1) M2.5 hex key
  6. (1) QR-Code Reference Card for User Manual
