Product Details
BH-30-LR II SPECS
Load Capacity
15 lb (6.8 kg)
Ball Diameter
1.2" (30 mm)
Height
3.0" (75 mm)
Base Diameter
1.6" (40 mm)
Tripod Mount Thread
3/8"-16
Head Type
Compact ball head with lever clamp
Clamp Type
Head Weight
0.7 lb (0.32 kg)
IS THE BH-30-LR II RIGHT FOR YOU?
- Best for: Travel, hiking, macro, tabletop, and everyday photography w/ mirrorless or smaller DSLR kits.
- Choose it if: You want a compact, lightweight ball head w/ lever-clamp speed that's still solid under medium load.
- Capacity: 15 lb (6.8 kg) rating for mirrorless cameras, pro DSLRs with lenses up to 200mm or similar.
- Working style: Ideal when you need fast camera repositioning, simple controls, and minimal setup.
- Interface: Arca-style B2-40-LR II Lever-Release clamp for secure, one-handed plate operation.
- Dimensions: 3.0" (75 mm) tall, 1.6" (40 mm) base diameter, 11.2 oz (318 g).
- Tripod mount: 3/8"-16 base thread compatible with most professional tripods and leveling bases.
- Built for: Photographers who want Really Right Stuff control and reliability in an ultracompact package.

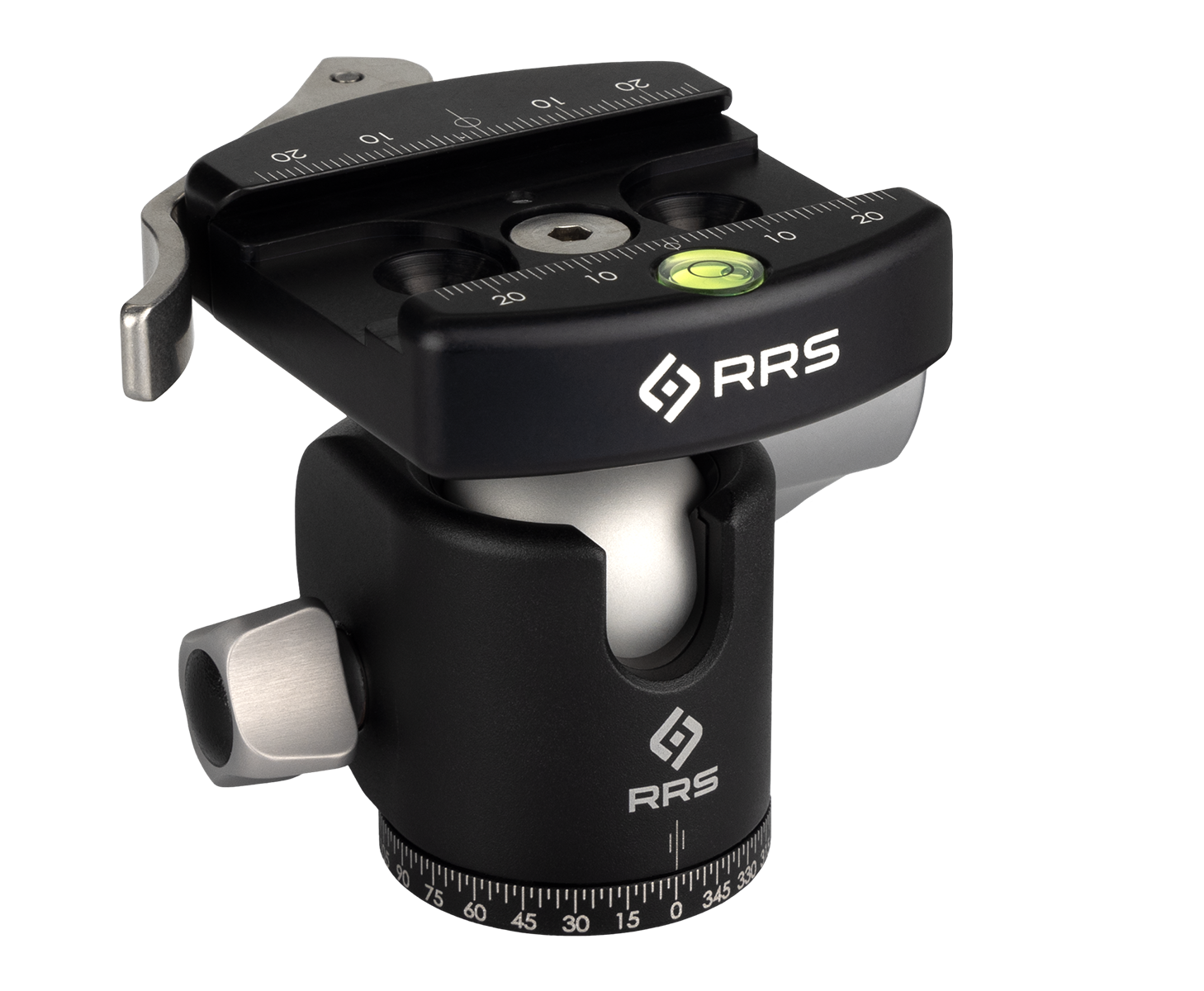

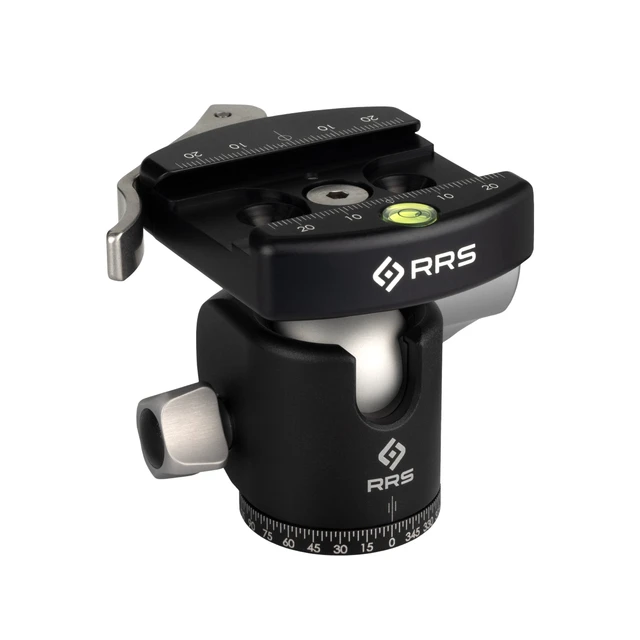

The RRS® BH-30 Ball Head
Compact precision for lightweight mobility
The BH-30-LR II is a travel-ready ball head that delivers smooth control and reliable lockup in a small, lightweight form, giving photographers a fast, intuitive way to support mirrorless and smaller DSLR kits without carrying unnecessary bulk.
BH-30-LR II FEATURES
- Impressive 15 lb (6.8 kg) load capacity to support mirrorless bodies, DSLRs with up to 200mm or similar kits.
- 30 mm hollow ball provides drag-free movement with up to ±45° tilt for intuitive, fluid composition.
- Single 90° drop notch enables fast portrait orientation changes without removing the camera.
- Low center of gravity places the ball deep in the housing to keep weight close to the tripod apex and improve stability.
- Precision panning base with 360° rotation and laser-engraved increments for panoramas and tracking.
- B2-40-LR II lever clamp offers fast, one-handed clamping on Arca-style plates with positive, repeatable engagement.
- Compact 3.0" height, 1.6" base diameter, and 11.2 oz weight prioritize lightweight mobility.
- Delivered in a padded Cordura pouch for added protection in transit or storage.
New to Ball Heads?
Learn more about what a ball head is, how it differs from other tripod heads, and how to choose the right model for your camera setup. The guide explains key features like load capacity, friction control, panning bases, and Arca-style clamps—helping you build a stable, responsive support system for landscape, travel, studio, and everyday photography.
WHAT'S IN THE BOX?
- 1 BH-30-LR II Ball head

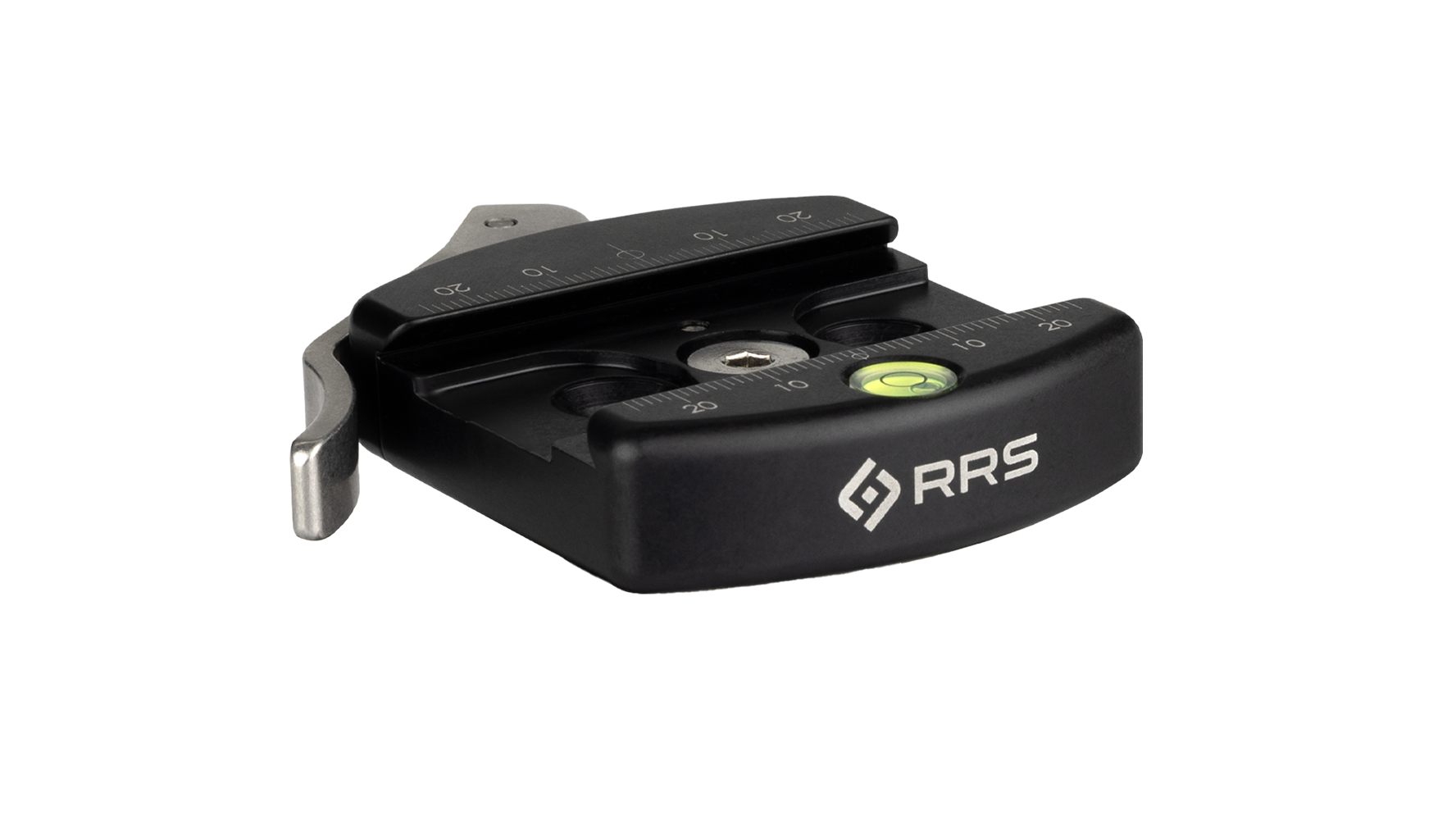

- 1 B2-40-LR II Clamp
- 1 BH-30 Ball head
- 1 Padded Cordura pouch with drawstring closure
- 1 5/32" hex key (required to attach SCA to ball head)
- 1 1/8" hex key (required to mount SC-ARC to SCA)
- 1 QR-Code Reference Card for User Manual
