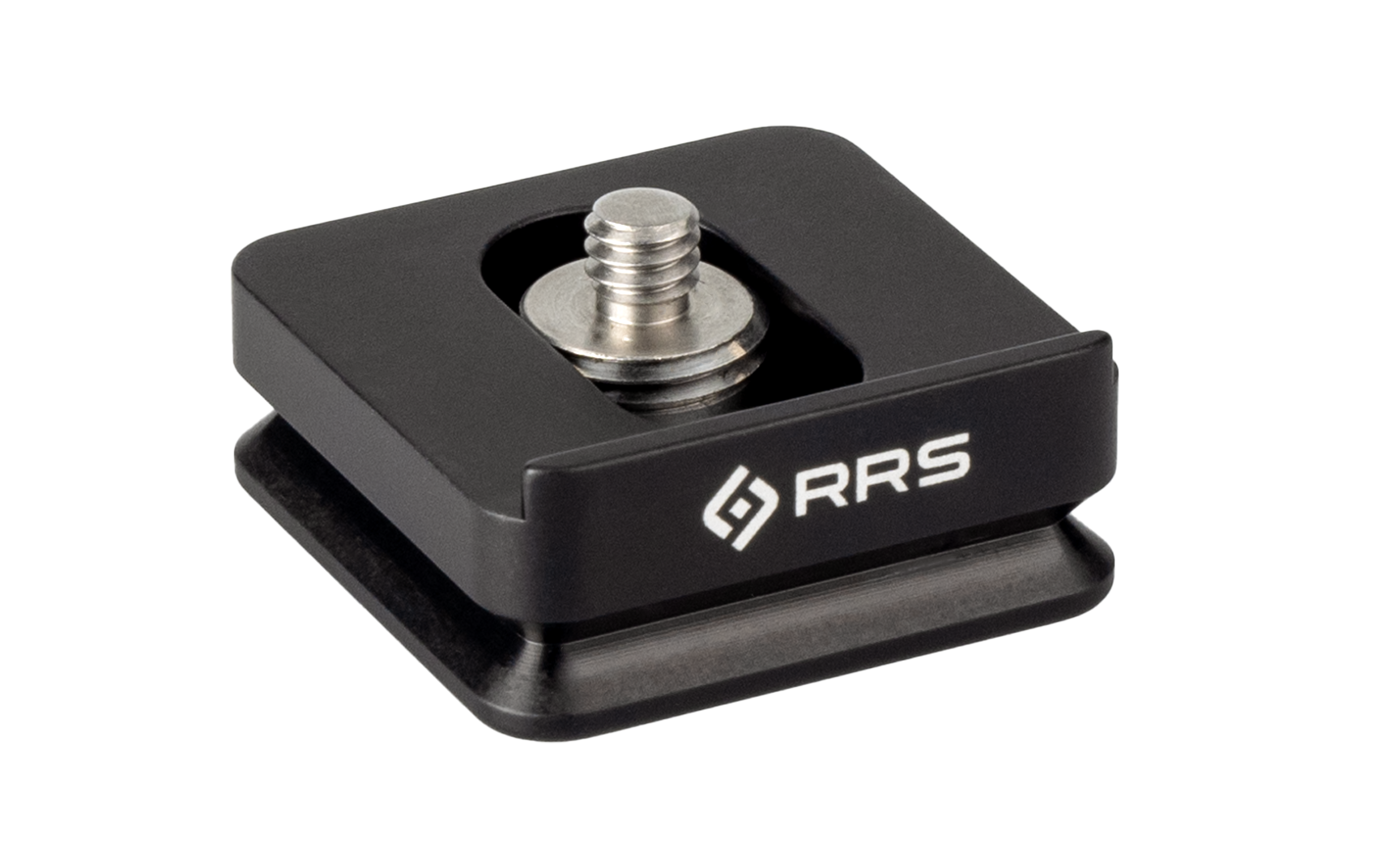

BQDS Chrono Plate Overview

The BQDS is our first bi-directional mounting plate with an integrated QD (Quick Detach) socket for shoulder straps. The patent-pending design centers the strap on the tripod socket of the camera body, which helps prevent the strap from inadvertently twisting the plate when using a shoulder strap. When you want to remove the shoulder strap and mount directly to a tripod head, just press the release button on the QD mount and you're ready to go.

The plate is designed to fit a wide variety of camera bodies and is precision machined from a solid block of 6061-T6 aluminum. Fully compatible with most quick-release systems patterned after our RRS Dovetail Standard, the plate features an anti-twist flange for a perfect fit that prevents twisting between the camera and our plate. A custom machined 1/4"-20 threaded, captive-style mounting screw threads into the tripod mounting socket of your camera body.


  • Integrated QD mounting socket for QD camera straps
  • Bi-directional dovetail design
  • Anti-twist flange
  • CNC machined 6061-T6 Aluminum
  • Anodized; Type II Black
  • Anti-twist flange is designed to mount against either the front or back of the camera body
  • Index mark only represents center when used with camera bodies that feature a sensor-centered tripod mounting socket


  • Country of Origin: USA
  • Weight: 1.6oz/ 44g
  • Height (Not including anti-twist flange): 0.51"/ 13mm
  • Height (Including anti-twist flange): 0.64"/ 16mm
  • Length: 1.5"/ 38mm
  • Width: 1.5"/ 38mm

In The Box

  • (1) Bi-directional conventional body plate
  • (1) 1/4"-20 captive screw with integrated QD socket
  • (1) 5/32" hex key
  • (1) User's guide
