Product Details

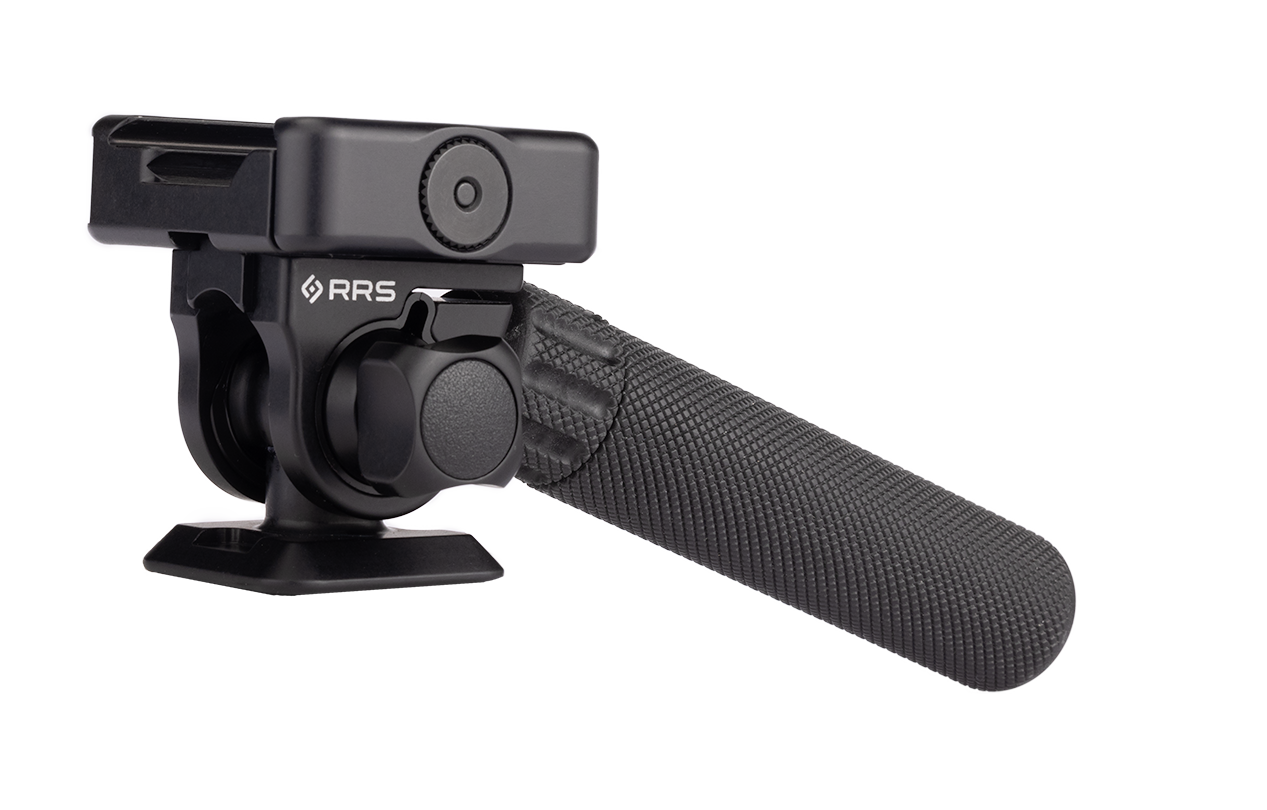

PT-SCOUT WITH SC-ARC SPECS
Height
2.36" (60 mm)
Width
2.48" (63 mm)
Length (Body Only)
2.52" (64 mm)
Weight (Handle Included)
9.52 oz (269.89 g)
Handle
5.71" x 1.00" (145 mm x 25.4 mm)
Mount Interface
RRS-LOCK® Dual Arca/Pic Lever Clamp (Top) + SC-ARC Dual 1.5" RRS Dovetail Clamp (Base)
IS THE PT-SCOUT WITH SC-ARC RIGHT FOR YOU?
- Best for: Operators and observers glassing in the field who need fast, secure Arca or Picatinny mounting for optics.
- Choose it if: You want fine-adjustable tilt tension and a removable handle for quick tuning without extra tools.
- Compatibility: The RRS-LOCK® Dual Arca/Pic Lever Clamp mounts directly to Arca-Swiss and Picatinny systems, and this configuration ships with the SC-ARC clamp attached at the base.
- Field advantage: A swappable pan brake/drag knob and a 90° tilt head notch add ergonomic control and extra locking torque.
- Carry profile: Weighs just 9.52 oz (269.89 g) with the handle and SC-ARC clamp included.
- Mount interface: Dual 1.5" RRS dovetail base with RRS-Lock® on the SC-ARC clamp keeps optics locked in place.
- Field advantage: A 2" handle extension range keeps grip confident even with gloves or heavier optics.
- Built here: CNC machined and Made in USA.
PT-Scout Lightweight Glassing Head: Arca/Pic Lever Release Clamp
The RRS® PT Scout
Customizable control, rock-solid stability, and field-ready versatility—engineered for every mission. The PT-Scout Pan Tilt Head is built for operators and observers who demand precision under pressure. Proudly made in the USA, it's purpose-driven for adaptability, offering the perfect balance of strength, fluidity, and control in any environment.
This configuration pairs the PT-Scout's RRS-LOCK® Dual Arca/Pic Lever Clamp with the SC-ARC clamp at the base, delivering instant, secure attachment for both Arca-Swiss and Picatinny systems while keeping optics locked in place through movement and recoil alike.
PT-SCOUT WITH SC-ARC FEATURES
- Fine-adjustable tilt pre-tension gives effortless control over any optic setup, large or small.
- Integrated 7/64" hex key, stored in the handle, allows quick tuning in the field.
- Extendable, removable handle with extra-long threading resists accidental removal.
- 2" handle extension range keeps handling confident, even with gloves or heavier gear.
- RRS-LOCK® Dual Arca/Pic Lever Clamp delivers instant, secure attachment to both Arca-Swiss and Picatinny systems.
- Compatible with ARMS-17s, SC-ARC, and BTC-PRO clamps for added platform versatility.
- Swappable pan brake/drag knob can be positioned on either side for ergonomic operation.
- 90° tilt head notch adds torque and locking stability on a 3/8"-16 stud, backed by a dual 1.5" RRS dovetail base with RRS-Lock®.
WHAT'S IN THE BOX?
- 1 PT-Scout
- 1 SC-ARC clamp
- 1x 1/8" hex key (required to mount clamp to body)
- 1x 7/64" hex key, integrated into end of handle (required to adjust tilt tension)
- 1 printed user's guide
