BH-55-PC SPECS
IS THE BH-55-PC RIGHT FOR YOU?
- Best for: Professionals running heavy camera bodies, long telephotos, or demanding support setups who need maximum stability.
- Choose it if: You want a low center of gravity, high-capacity ball head with integrated panoramic capability and a lever-release clamp.
- Capacity: 50 lb (23 kg) weight rating for pro-level cameras, big glass, and accessories.
- Working style: Ideal for landscape, wildlife, macro, studio, and panoramic work where solid lockup and repeatability matter.
- Interface: Arca-style Panorama Lever-Release clamp (PC-LR) with integrated panning base and engraved scale.
- Dimensions: 4.6" (119 mm) tall, 2.9" (73 mm) base diameter, 2.3 lb (1.0 kg) package weight.
- Tripod mount: 3/8"-16 base thread for compatibility with most professional tripods.
- Made here: American-made ball head built for long-term use in demanding environments.
The RRS® BH-55 Ball Head
Heavy-duty precision with panoramic control

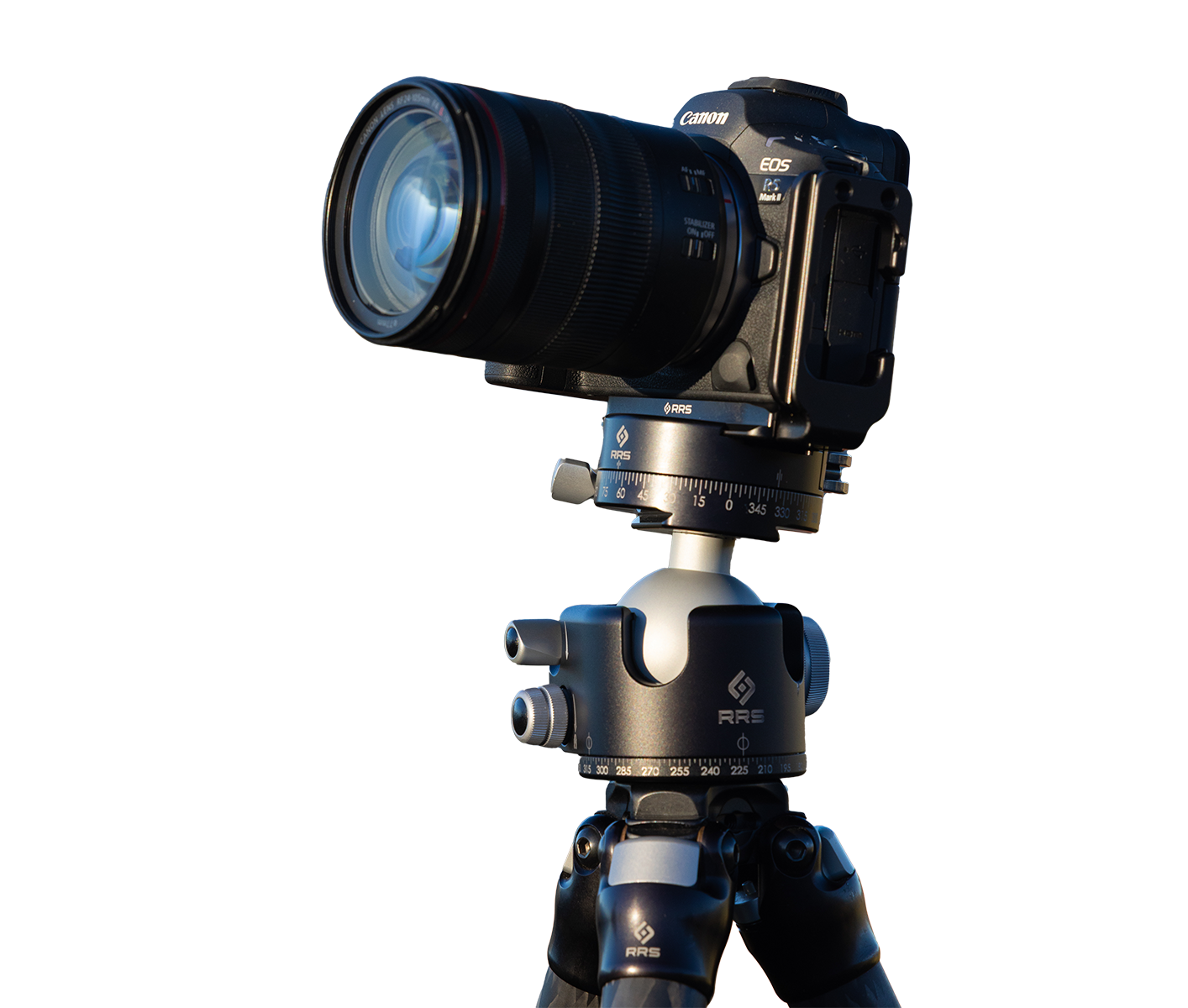

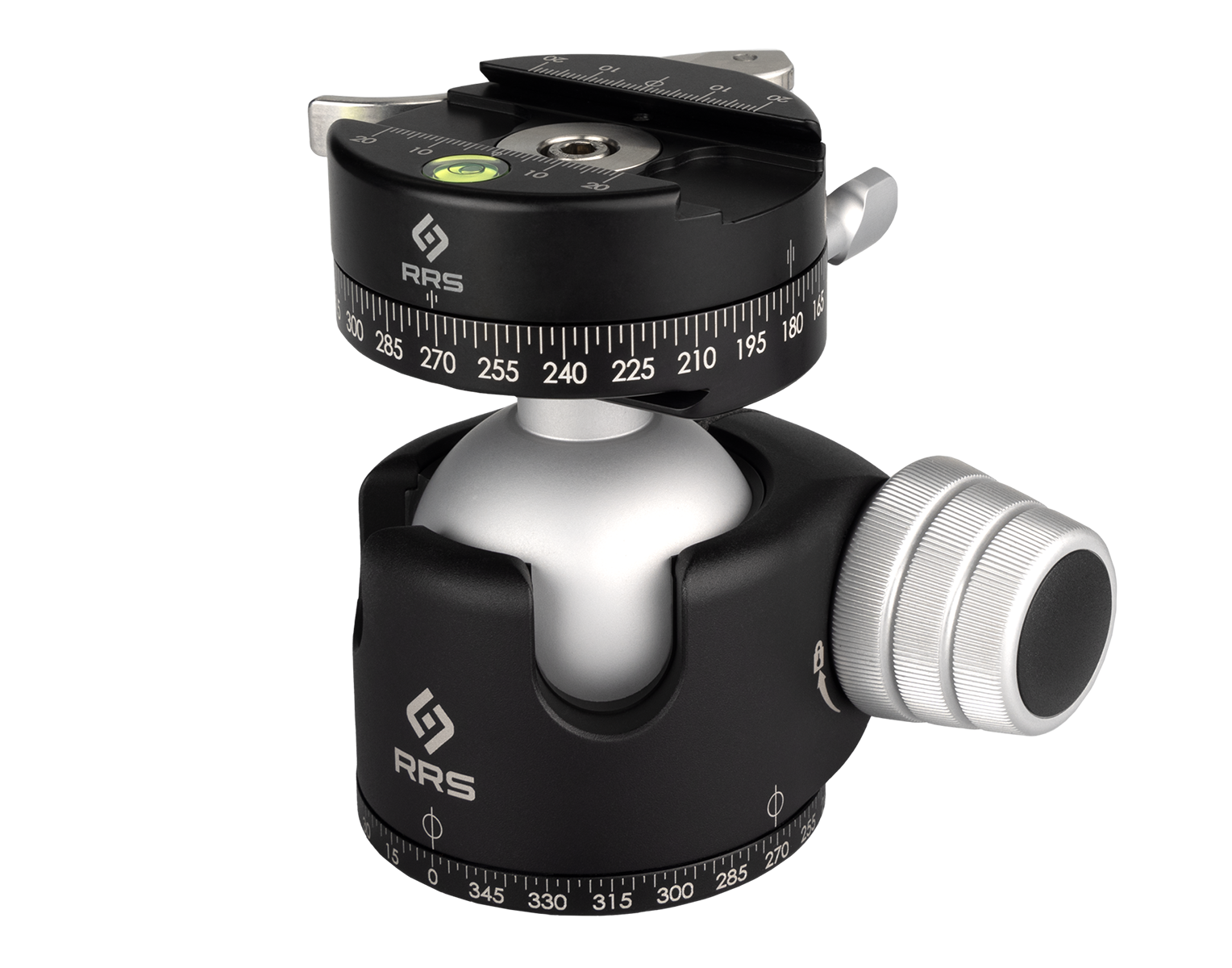

The BH-55-PC is a flagship, heavy-duty ball head that combines a low center of gravity, exceptional locking power, and an integrated Panorama Lever-Release clamp, giving working professionals smooth articulation, secure support, and built-in panning for stitching and tracking without adding extra hardware.
BH-55-PC FEATURES
- Exceptional 50 lb (23 kg) load capacity for pro cameras, large lenses, and demanding support setups.
- 55 mm hollow ball design provides smooth 360° rotation with ±45° of tilt in any direction.
- Dual 90° drop notches allow fast portrait orientation changes without rotating the entire head.
- Low center of gravity keeps the load close to the tripod apex to minimize torque and improve rigidity.
- Integrated Panorama Lever-Release (PC-LR) clamp adds 360° panning with engraved scale for panoramas and tracking.
- Compact yet robust form factor at 4.6" tall with a 2.9" base and 2.3 lb package weight.
- Arca-style clamp interface for fast, secure mounting with RRS and other compatible plates.
- American-made construction and included padded pouch support long-term field use and transport.
New to Ball Heads?
Learn more about what a ball head is, how it differs from other tripod heads, and how to choose the right model for your camera setup. The guide explains key features like load capacity, friction control, panning bases, and Arca-style clamps—helping you build a stable, responsive support system for landscape, travel, studio, and everyday photography.
Precision that flows with your vision

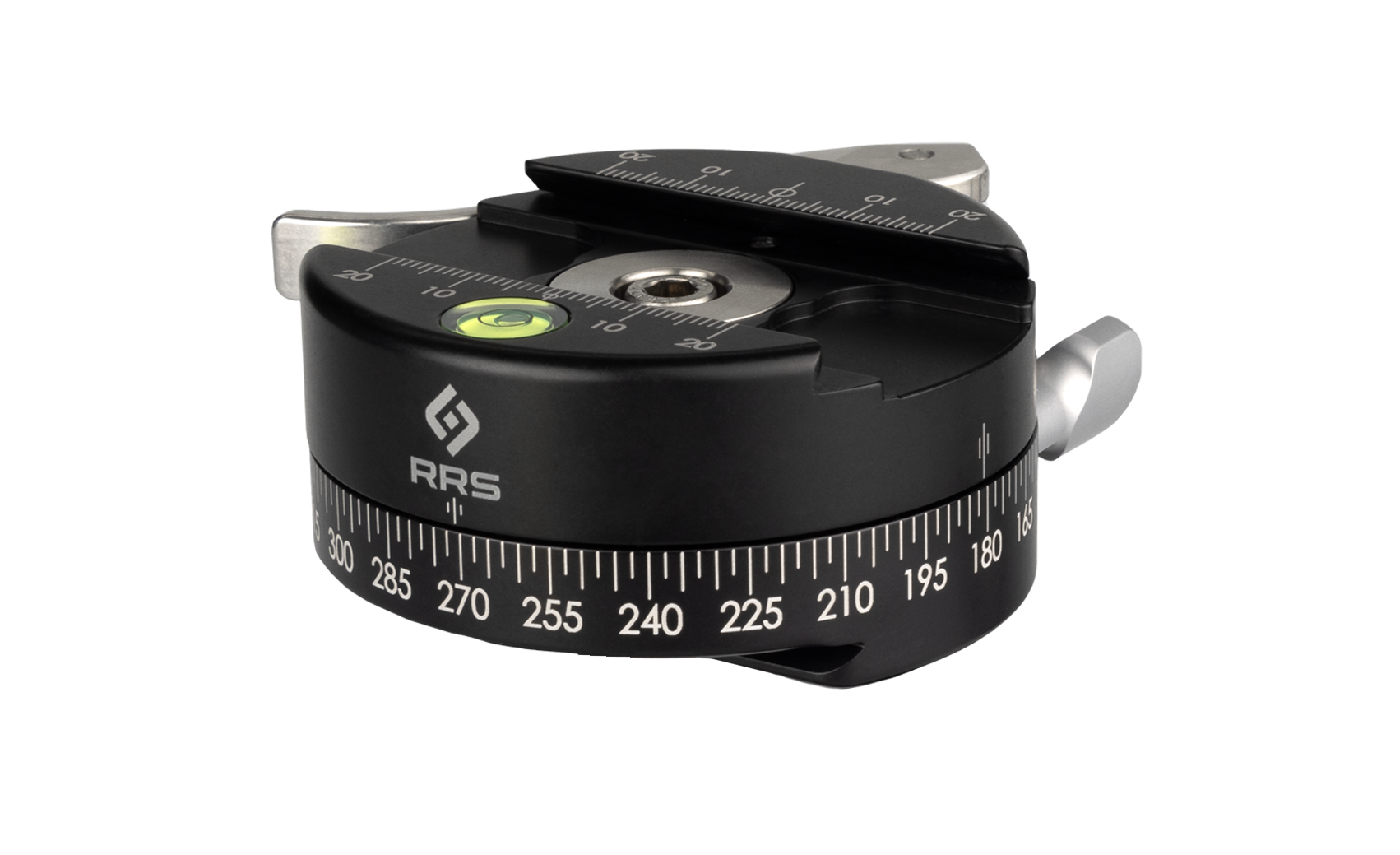

The included PC-LR delivers fast, tool-free 360° panning with RRS-level precision, mounting directly to any Arca-compatible clamp for instant panoramic capability. Its top-loading lever enables rapid one-motion swaps, while the lockable panning base and laser-engraved scale ensure accurate, repeatable horizons without needing extra leveling gear. Reinforced with the R-Mount rosette for zero flex and built-in bubble level and low-profile design for confidence in the field, it’s the fastest, most streamlined way to add true panoramic control to your setup. Learn more here.
New to Ball Heads?
Learn more about what a ball head is, how it differs from other tripod heads, and how to choose the right model for your camera setup . Our in-depth guide explains key features like load capacity, friction control, panning bases, and Arca-style clamps—helping you build a stable, responsive support system for landscape, travel, studio, and everyday photography.
WHAT'S IN THE BOX?
- 1 BH-55-PC Package
- 1 BH-55 Ball Head
- 1 PC-LR Panorama Lever-Release Clamp
- 1 Padded Cordura pouch with drawstring closure
- 1 5/32" hex key (required to attach SCA to ball head)
- 1 1/8" hex key (required to mount SC-ARC to SCA)
- 1 User's guide for ball head and clamp features
- 1 QR-Code Reference Card for User Manual
