Empower your photography with compact precision tailored for mid-weight setups

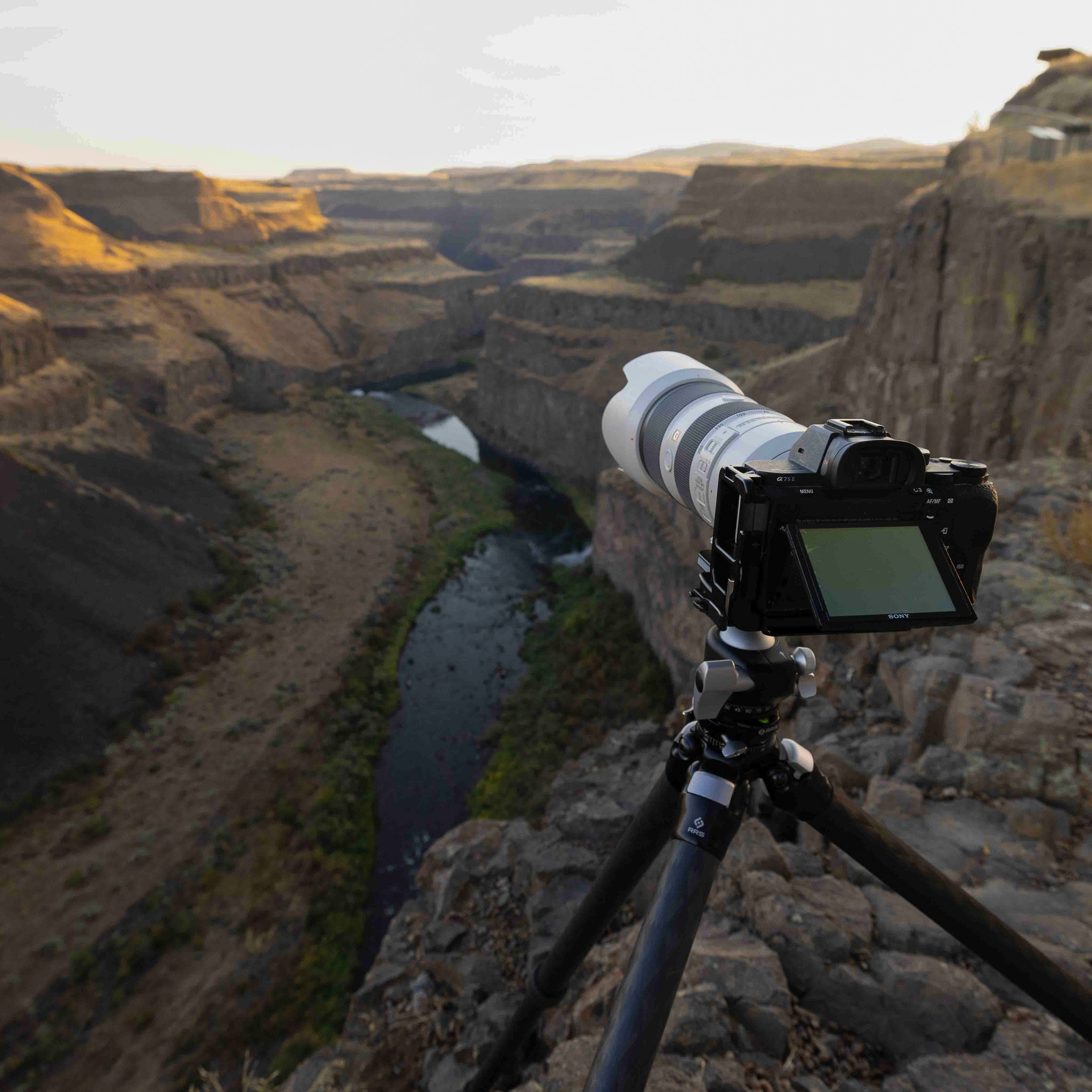

The RRS® BH-40 Ball Head
The BH-40 inspires seamless creativity, delivering smooth control and unwavering stability to elevate every shot on your adventures.
For exact dimensions, load ratings, and configuration details, jump to the full specification table below.
Impressive 18 lb Load Capacity
Supports mid-range cameras, moderate lenses, or optics, delivering secure hold for everyday shots without sacrificing portability or performance.
Smooth Articulation with Secure Locking
Features a 40mm hollow ball for smooth movement and ±45° of tilt in any direction, allowing easy positioning followed by instant, sag-free locking at any angle.
Single 90° Drop Notch for Portrait Flexibility
Enables quick vertical orientation switches without removing the camera, streamlining workflows for portrait, macro, or multi-angle photography.
Low Center of Gravity Design for Enhanced Stability
Positions the ball low in the housing to keep the equipment's center of mass close to the tripod apex, minimizing moment arms and torsional stress for superior overall rigidity, while ensuring a firm connection to transfer vibrations effectively to the carbon fiber legs for dissipation.

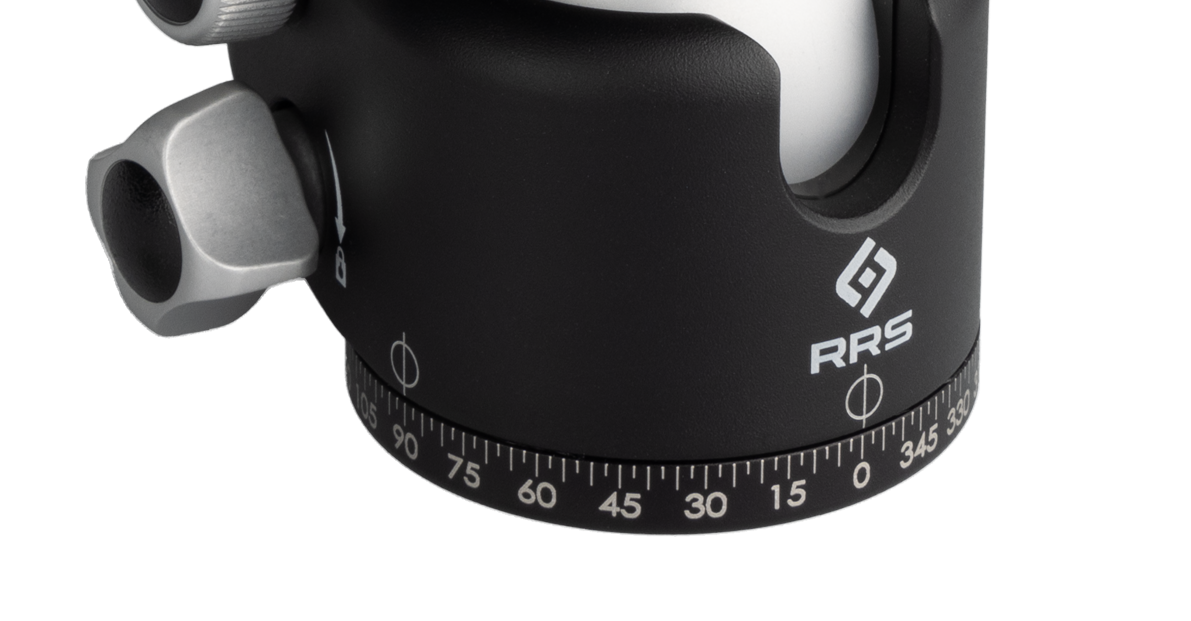

Precision Panning Base with Engraved Markings
Lockable 360° rotation with laser-engraved 2.5° increments for accurate panoramic stitching or tracking, enhancing repeatability in landscape and time-lapse applications.
Compact Yet Robust Dimensions
At 3.0" tall with a 2.1" base diameter and weighing just 1.1 lb (excluding clamp), it prioritizes lightweight mobility with professional-grade durability, ideal for hikers and travelers.
Elevate your support system with American-made mastery
The Really Right Stuff BH-40 ball head and experience compact precision tailored for mobility before your next adventure!
New to Ball Heads?
Learn more about what a ball head is, how it differs from other tripod heads, and how to choose the right model for your camera setup . Our in-depth guide explains key features like load capacity, friction control, panning bases, and Arca-style clamps—helping you build a stable, responsive support system for landscape, travel, studio, and everyday photography.
| Specification | BH-40 No Clamp | BH-40-LR | BH-40-LR II | BH-40-ARC | BH-40-PRO | BH-40-PRO II | BH-40-PC |
|---|---|---|---|---|---|---|---|

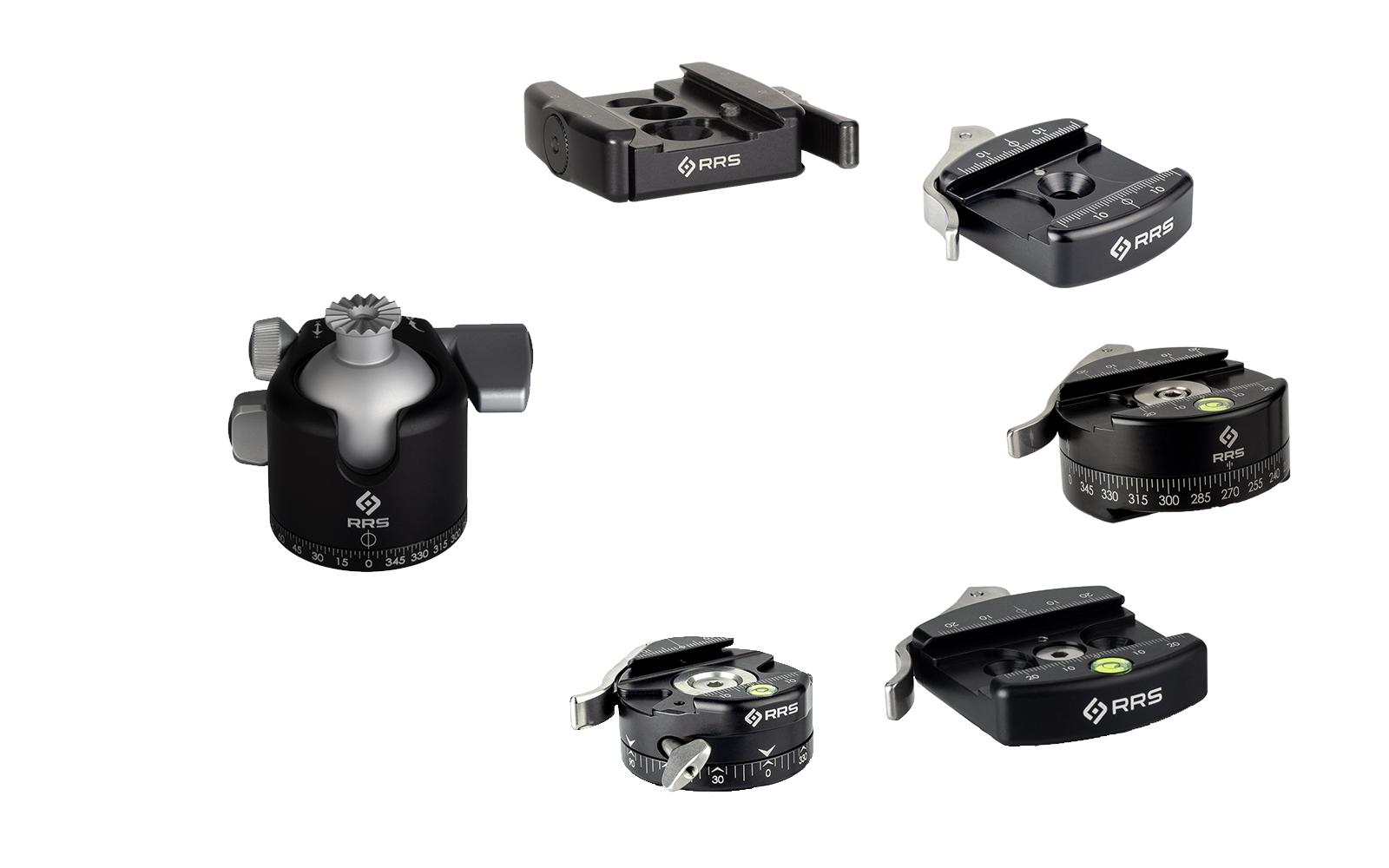

| Clamp | N/A | 40mm Lever-Release | 60mm Lever-Release | RRS-Lock® Lever-Release | 40mm Screw Knob | 60mm Screw Knob | Ultralight, Panorama Lever-Release |
| Height | 3.0" (76 mm) | 3.1" (78 mm) | 3.0" (76 mm) | 3.17" (80.5 mm) | 3.0" (77 mm) | 3.2" (81 mm) | 3.6" (91.8 mm) |
| Weight | 14.3 oz (405 g) | 15.7 oz (445 g) | 17.1 oz (486 g) | 17 oz (482 g) | 14.4 oz (407 g) | 16.1 oz (457 g) | 18.7 oz (531 g) |
| Weight Capacity | 18 lbs (8.2 kg) | ||||||
| Base Diameter | 2.1" (53 mm) | ||||||
| Ball Diameter | 1.6" (40 mm) | ||||||
| Tripod Thread | 3/8"-16 socket (stud no taller than 3/8") | ||||||
| Country of Origin |  |
||||||
| More Info |  |
||||||
What's in the box?
- 1 BH-40 Ball Head (No Clamp)
- 1 Padded Cordura pouch with drawstring closure
- 1 5/32" hex key (required to remove/replace clamp)
- 1 ¼"-20 x 3/4" stainless steel flat head mounting screw
- 1 QR-Code Reference Card for User Manual
