B2-LR-II Arca Quick-Release Lever Clamp: 60mm

SKU:
RRS-9000068
UPC:
818413023048
$145.00
Adding to cart… The item has been added
Product Details

The RRS® B2-LR-II Clamp

Crafted for versatile photographers and videographers seeking reliable mounting across diverse setups, the B2-LR II combines precision leveling and high load capacity to support mid-sized gear in dynamic shooting environments.

Versatile 60mm Jaw length with Dual-Mounting Options

Equipped with a center 3/8"-16 threaded socket and two additional 1/4"-20 holes spaced 30mm apart, this clamp seamlessly integrates with a wide range of tripod heads, platforms, and accessories, offering flexible setup configurations for diverse shooting scenarios.

B2-LR-II Clamp

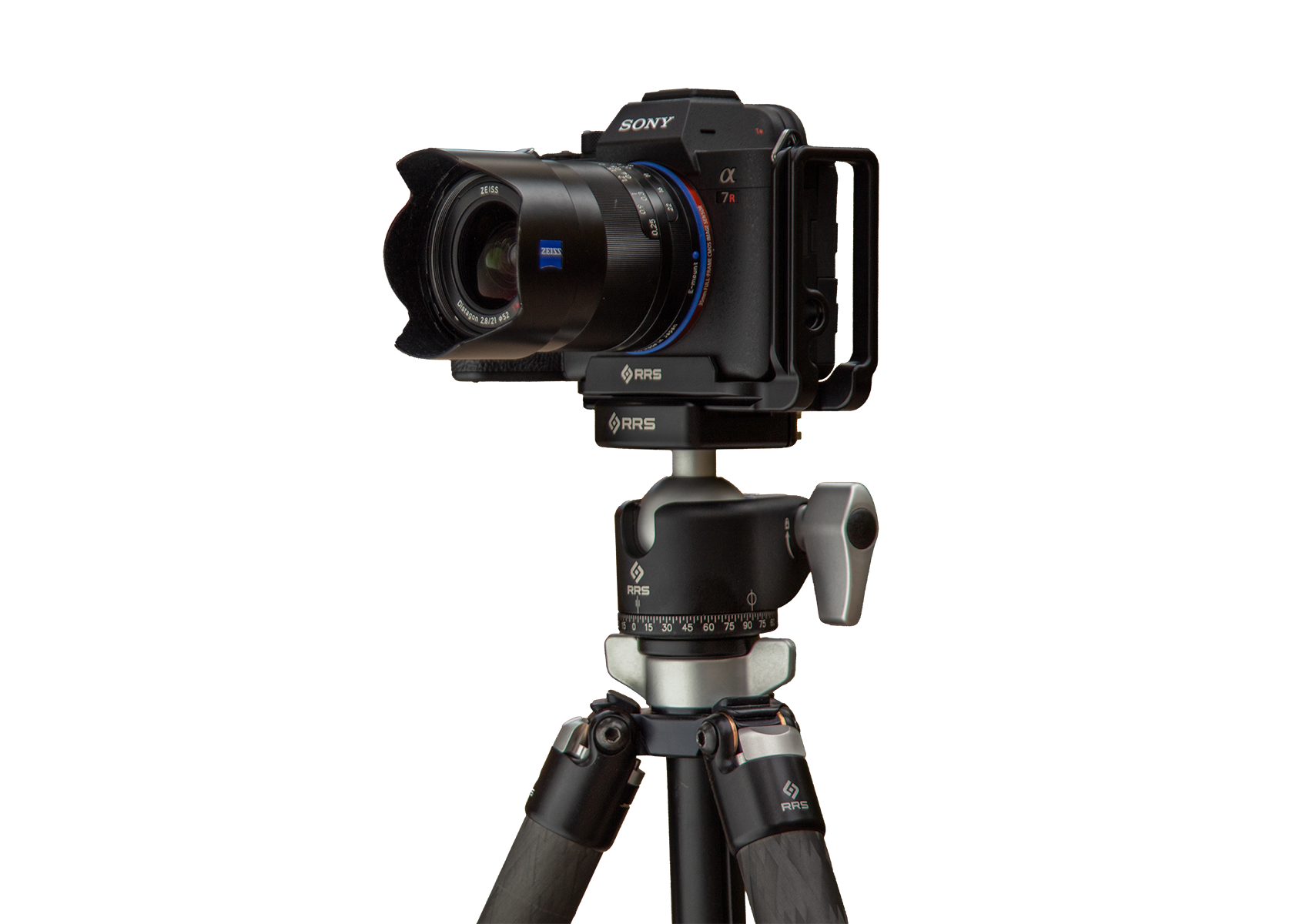

BH-30 Versa with B2-40-LR

Seamless Arca Compatibility with RRS Precision

This clamp features an integrated Arca-style dovetail for widespread compatibility with industry-standard quick-release plates, while adhering to the precise 1.5" RRS Dovetail Standard for the strongest, most secure clamp-to-plate connections available.

Rapid Lever-Release with Effortless Top-Loading

Patented lever enables instant, finger-force gear swaps and one-motion top-loading for quick plate insertion from above, boosting your efficiency through extremely fast gear transitions.

BH-55-LR With Camera on top
B2-LR with rosette

Enhanced R-Mount Rosette for Superior Strength and Flexibility

This updated rosette design replaces traditional tongue-and-groove connections to withstand extreme torque from long precision rifles, preventing bending or shearing at the clamp interface while also offering precise alignment options every 22.5 degrees.
As of 2020, all clamps feature an updated attachment style and will not sit flush with older ball heads. To resolve this, utilize our clamp rosette adapter.

Laser-Engraved Scale for Consistent Positioning

Easily visable markings allow precise, repeatable plate alignment for enhanced consistency in macro, studio, and panorama work.

B2-LR-II measurements

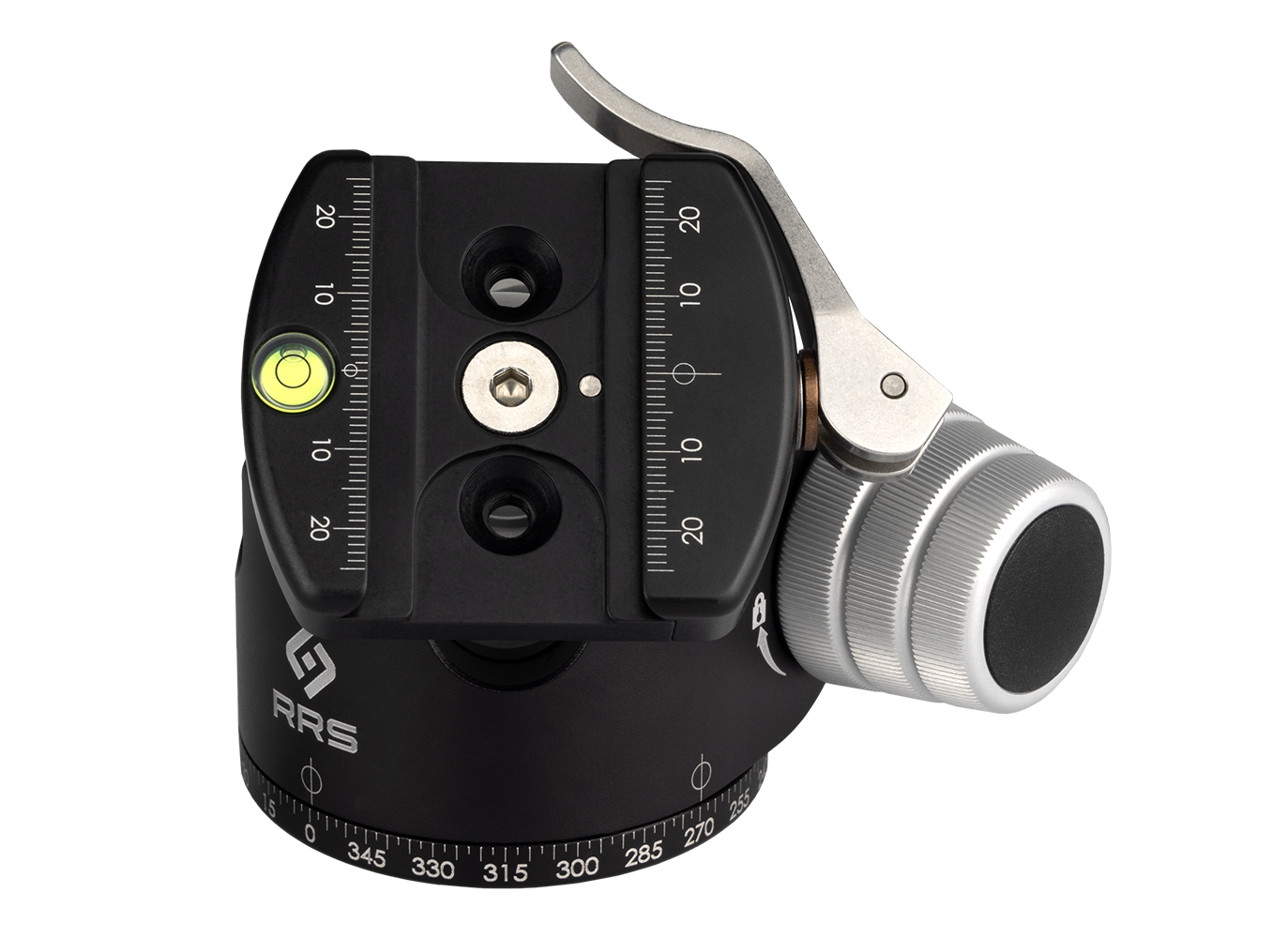

BH-55-LR top view

Integrated Bull's-Eye Spirit Level for Precision Leveling

Built-in bubble level helps you achieve a horizontal level in fewer adjustments, saving you time and frustration.

Enhanced Safety with Visual Lock Indication

The lever's three-position design (closed, half-open, fully open) provides immediate visual feedback on your clamp's status, giving you confidence in your rapid gear swaps.

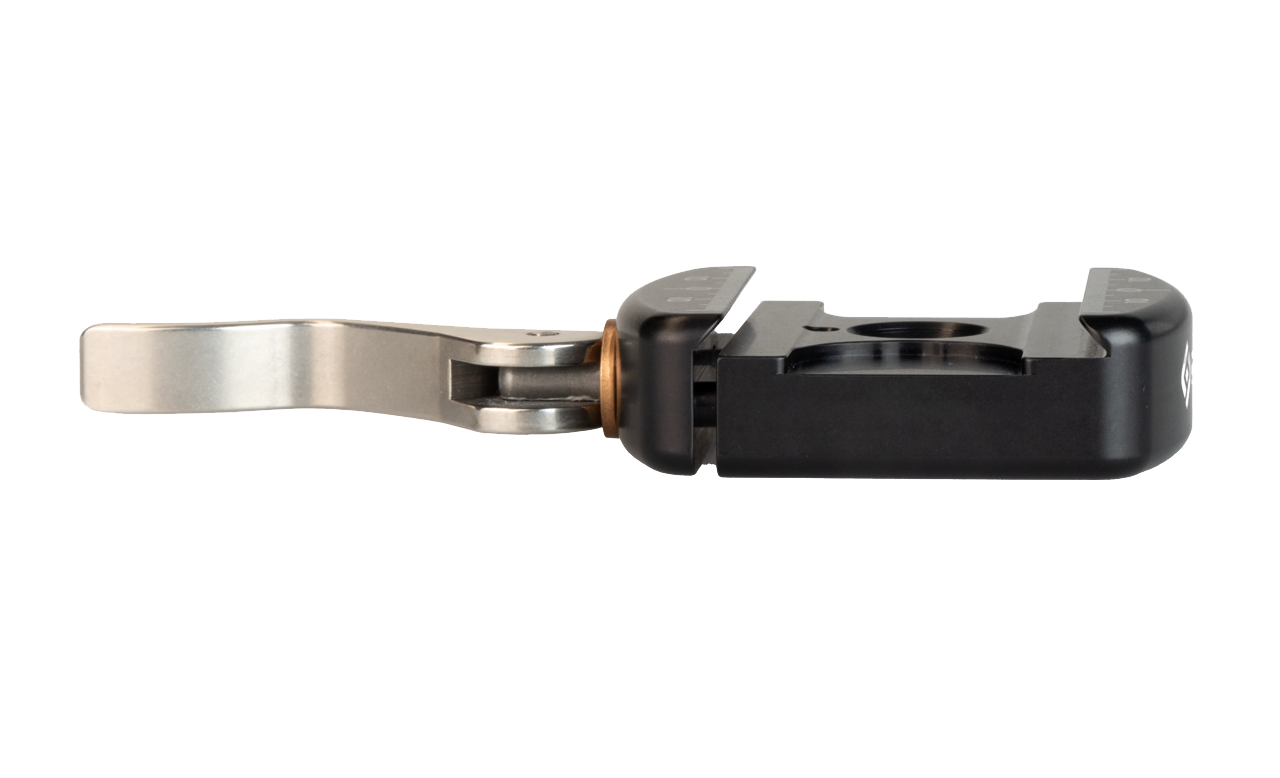

B2-40-LR with open lever

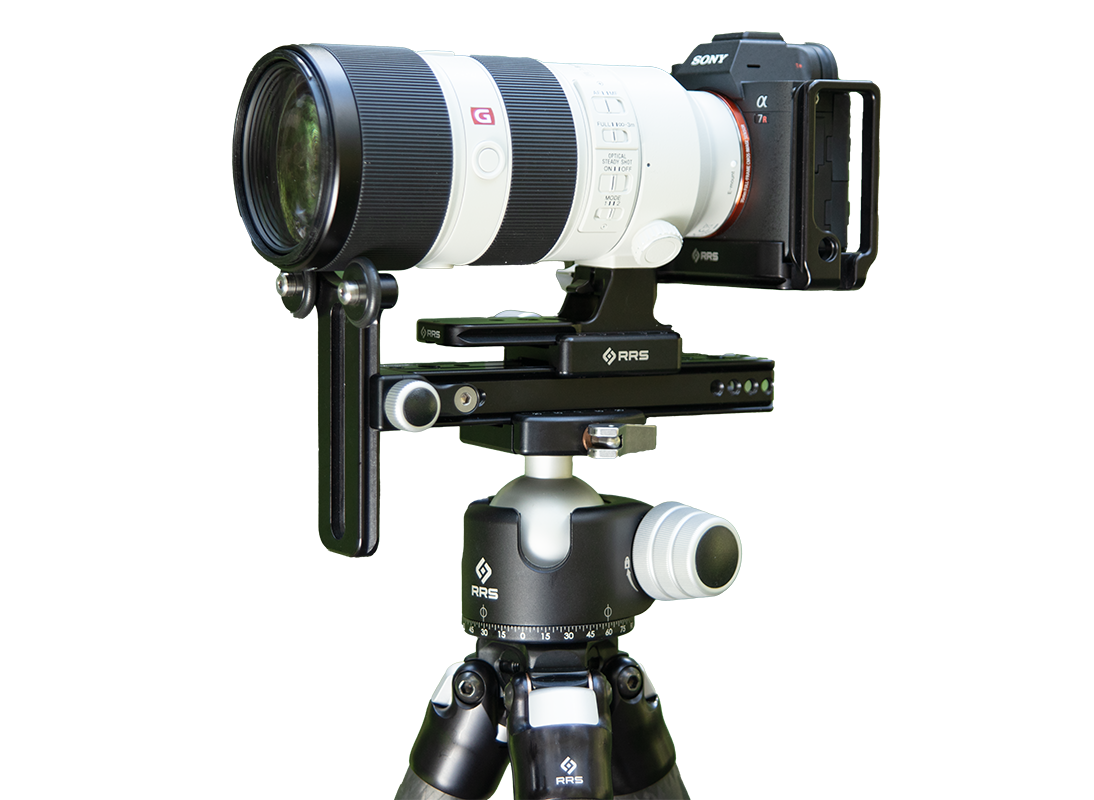

BH-55-LR with long range setup

Low-Profile Lever Prevents Snags

The sleek, contoured lever hugs the clamp body closely without protruding, reducing the risk of catching on clothing, straps, or terrain, enhancing equipment safety in rugged outdoor conditions.

Elevate your support system with American-made mastery

The often imitated, but never duplicated speed and security of our industry-leading Arca-style lever clamps before your next adventure!

Dimension B2-40-LR
Jaw Length 2.4" (60 mm)
Width 3.4" (86 mm)
Height 0.6" (15 mm)
Weight 5.3 oz (150 g)
Center hole threaded 3/8"-16
Outter holes threaded 1/4"-20 spaced 30mm apart on center
Country of Origin Made in USA badge

What's in the box?

(1) B2-LR-II clamp
(1) Flat Head Screw, 1/4"-20
(1) Flat Head Screw, M6-1.0
(1) 5/32" Hex Key
(1) QR-Code Reference Card for User Manual
