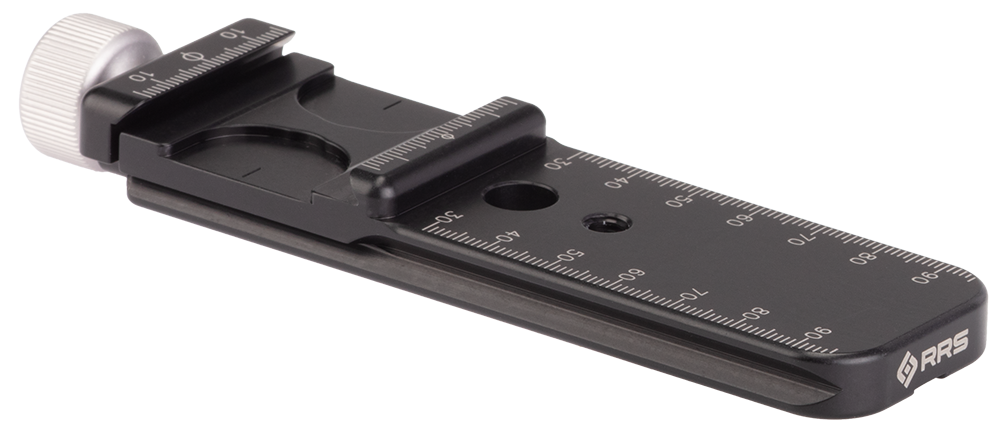

MPR-CL III Nodal Slide Rail

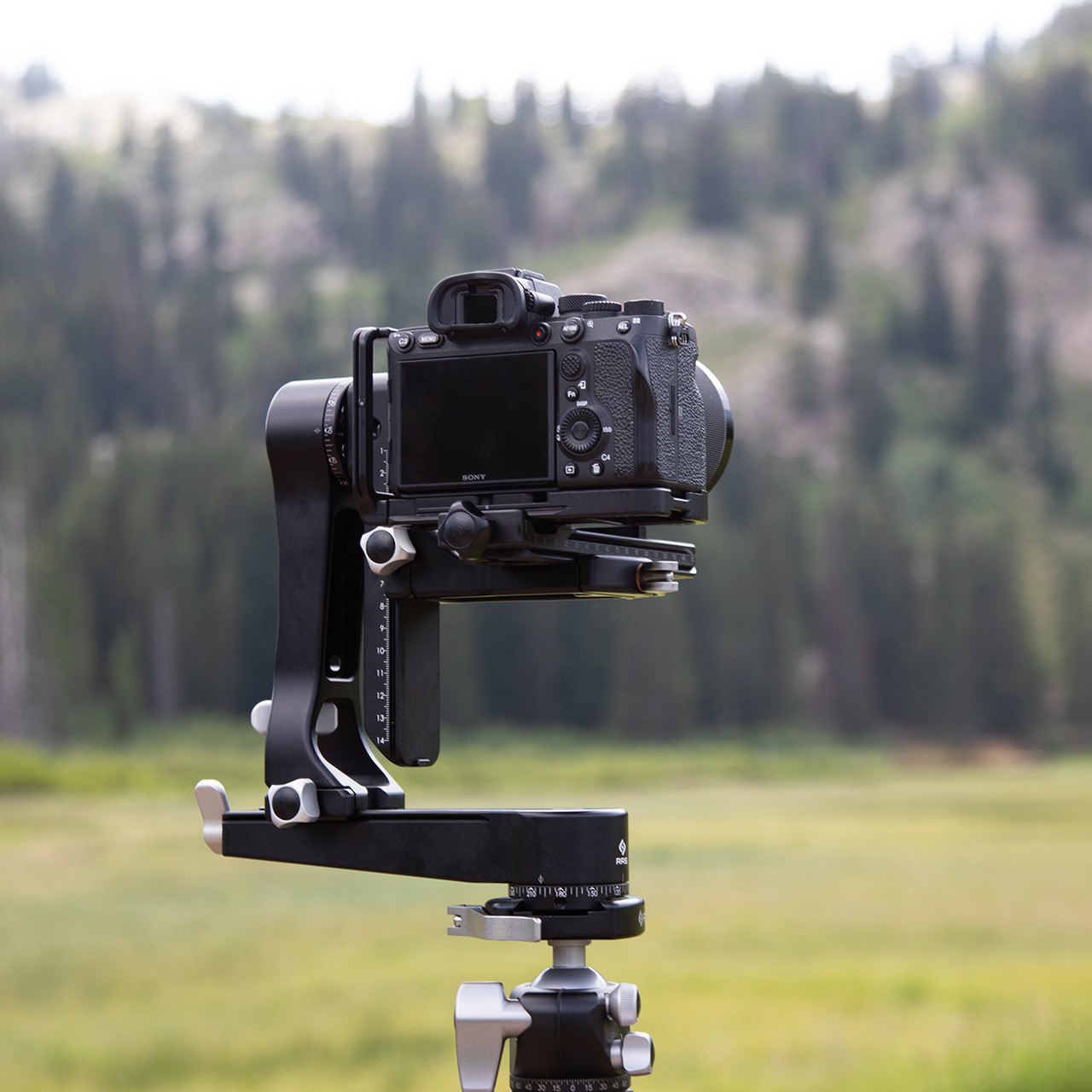

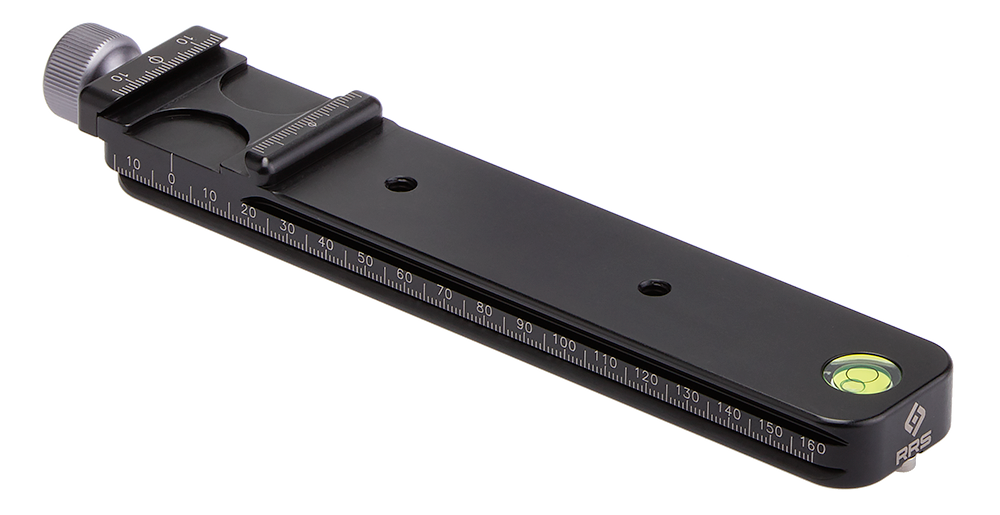

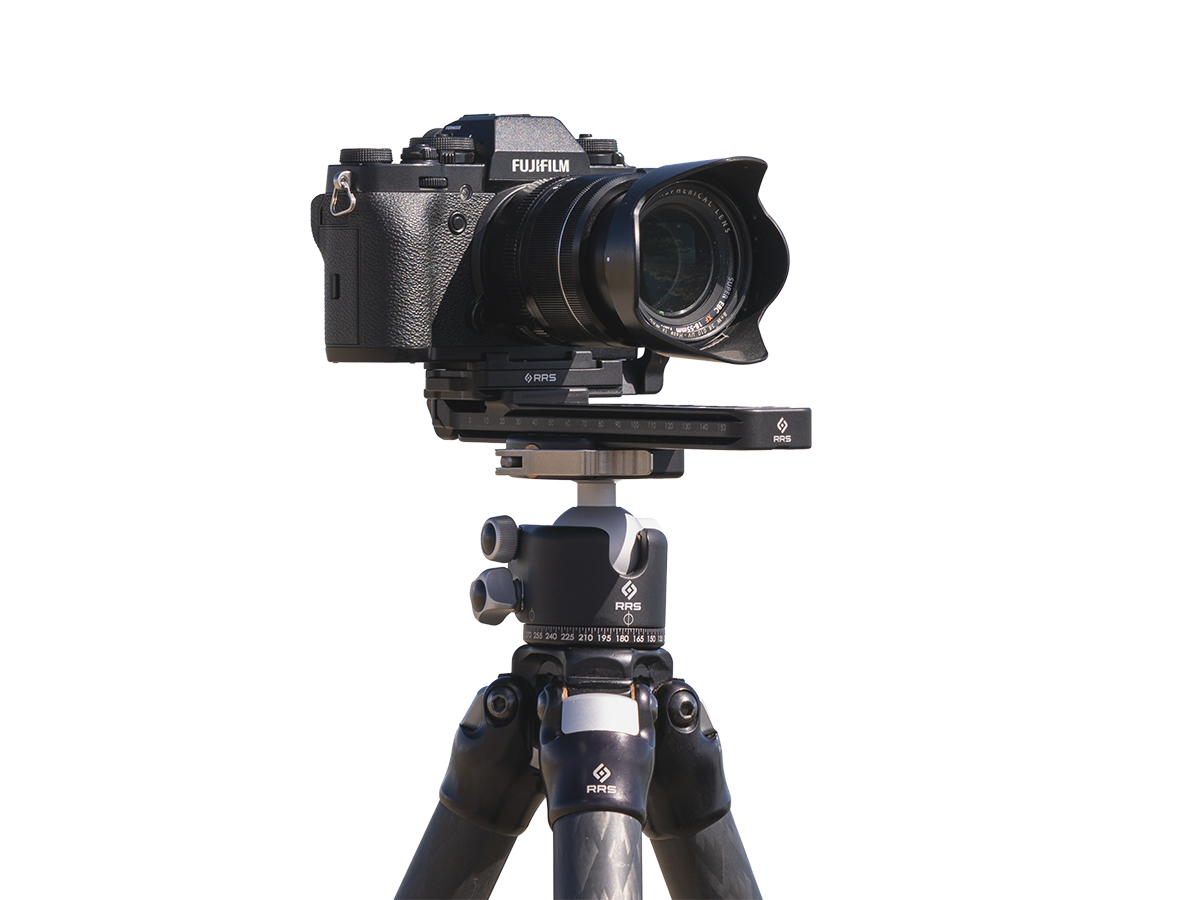

Are you looking to step up your panorama photography game to the next level? The Really Right Stuff MPR-CL III is ready for wherever your adventure leads. Use this nodal slide rail to ensure your lens's optical center is located directly above your panning axis. This helps ensure hassle-free image stitching with less distortion and warp required. Building upon the functionality of the MPR-CL II, we have increased the usability and applicability of this multi-purpose rail. Check out all the new features below!

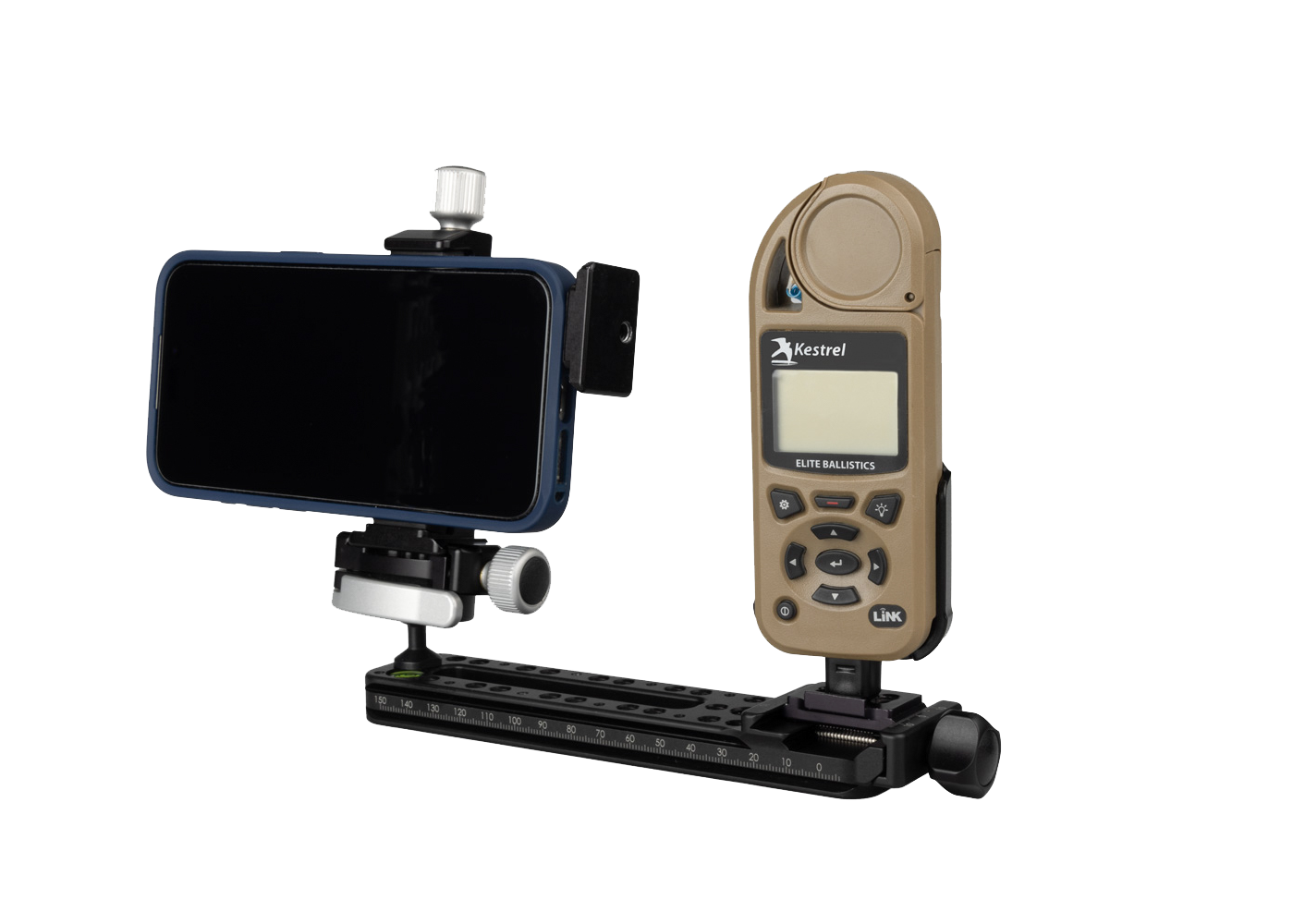

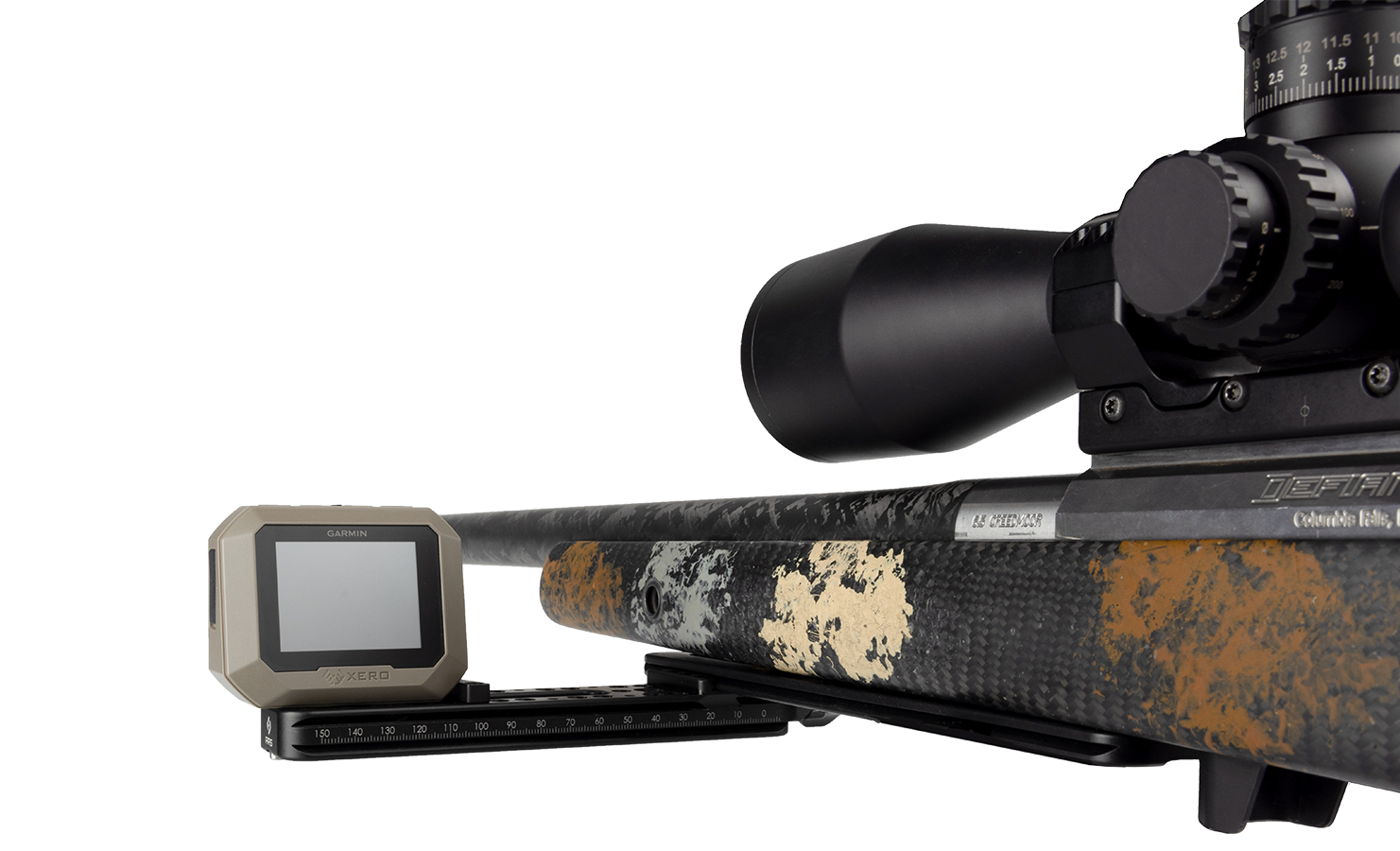

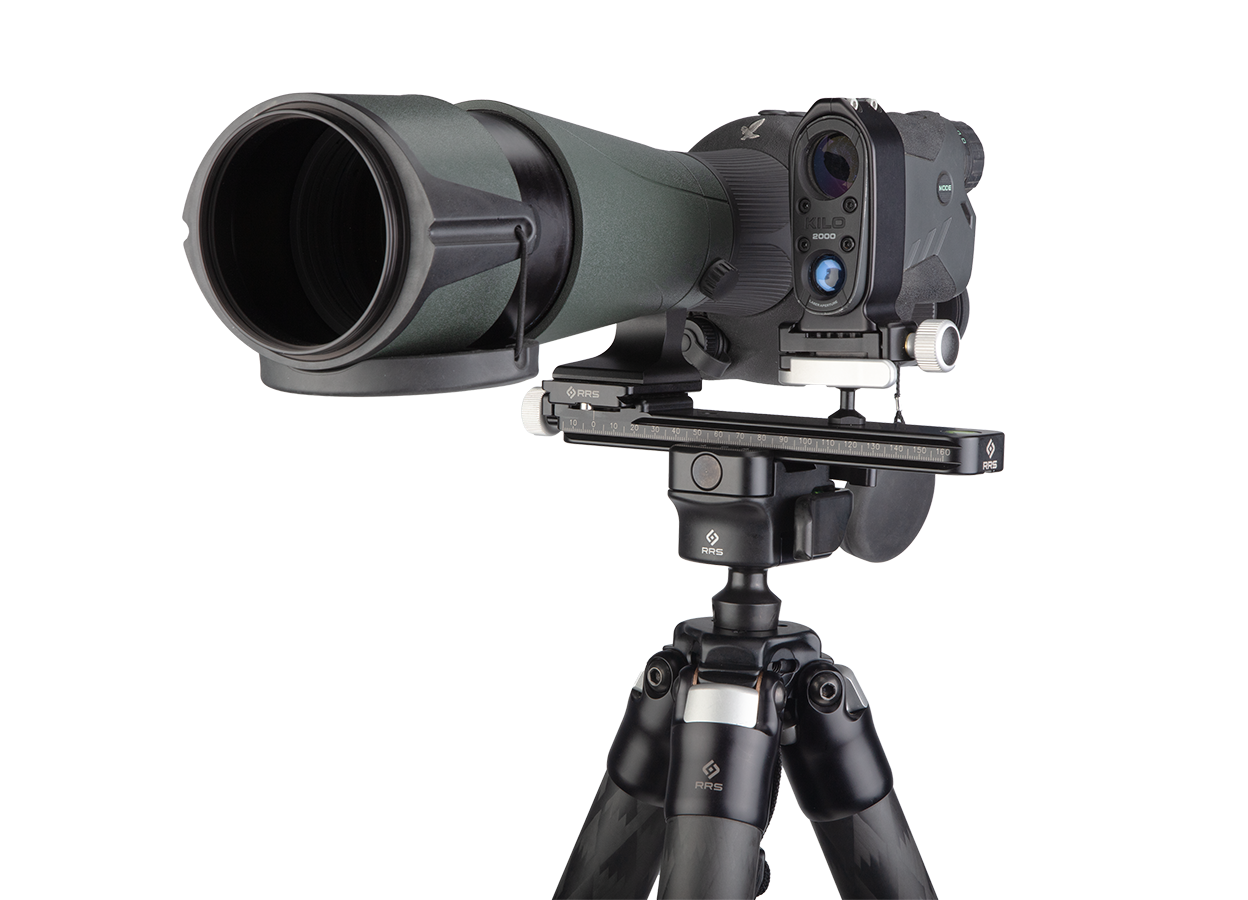

New Features: With the use of our patented RRS dual-clamp technology, the MPR-CL III supports mounting to NATO STANAG 4694 Rails (commonly known as Picatinny), opening up a wide range of new applications for this rail. The addition of (21) 1/4"-20 and (1) 3/8"-16 thru-tapped holes allows the user to customize their rig with a number of accessories, such as our BC-18 or BPC-16 head. The outside 1/4"-20 holes along each dovetail are spaced 9mm/18mm apart down the length of the rail, making it compatible with many popular accessories on the market. The long slot and custom B105 captive screw can be used to mount accessories to the top or bottom of the rail, such as displays, chronographs, or any product with a female 1/4"-20 tapped hole.

Combine this with our MPR-C bar for anti-rotation and indexed mounting. The fluted lock knob allows for a wide range of travel while also being glove-friendly to use. RRS-Lock adds another dimension of security to the product when used with RRS-Lock clamps, such as the ARC-LR, SC-ARC or Anvil-30 ARC. The MPR-CL III's RRS-Lock system features ramped end-stops that prevent the rail from sliding off one end, rather than discrete positioning stops such as those found on our USR products.

Features

• MADE IN THE USA
• Dual Clamp design works with RRS-compatible dovetails and NATO STANAG 4694 rails

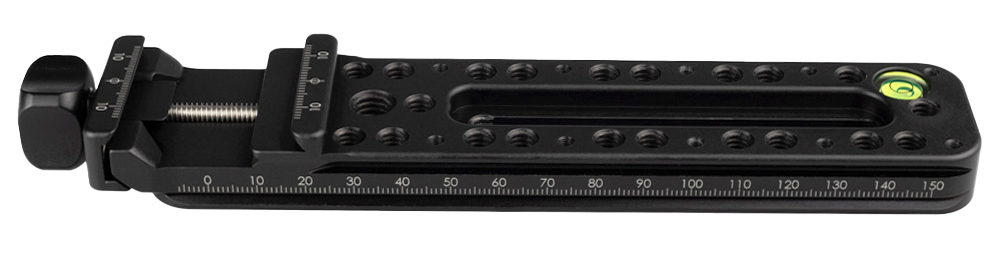

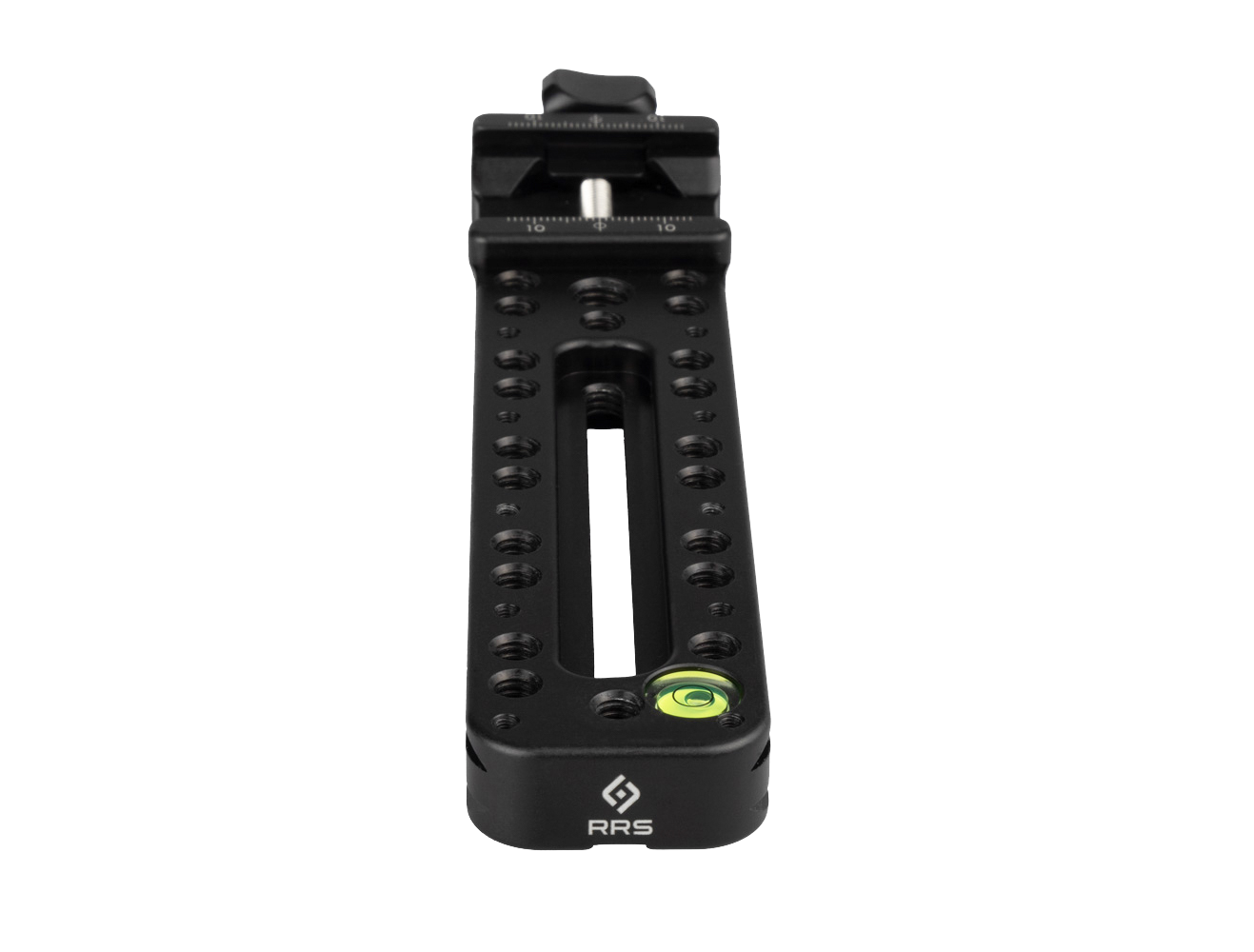

• 21x 1/4"-20 thru-tap cheese-plate design with industry-standard 9mm hole spacing (fore-aft) v
• 1x 3/8"-16 thru-tap Accessory Socket * 5-position MPR-C flange M3x0.5 mounting holes (top or bottom)
• CNC machined 6061-T6 Aluminum
• Anodized; Type II Black
• 2X Safety-stop screws
• Laser engraved mm scale marks
• Integrated 12mm bubble level
• RRS-Lock end-stops
