60mm M-LOK Plate

Compact, recoil-ready M-LOK mounting with fast Arca/RRS tripod compatibility.

60mm M-LOK Plate — BMLOK-60

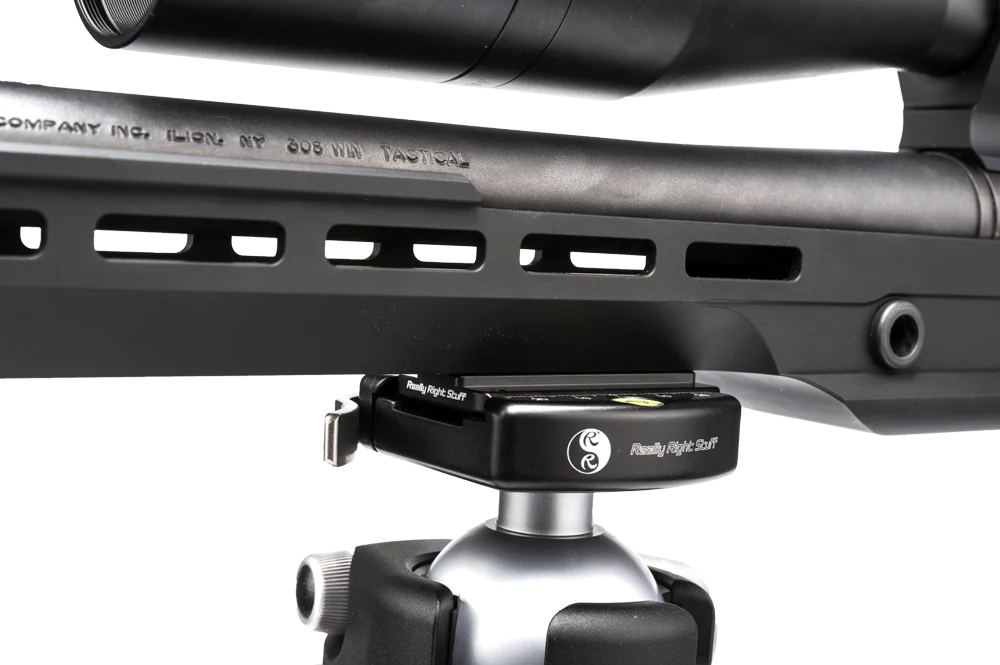

The BMLOK-60 is a rugged 60mm M-LOK mounted dovetail plate that converts an M-LOK handguard into a rigid 1.5" RRS / Arca-type interface. It’s designed for stable, repeatable attachment to RRS quick-release clamps and most Arca-type clamps—ideal for tripod-supported shooting, glassing setups, and field stabilization. Removable stop screws help create a non-slip mounting point and reduce the chance of accidental slide-out when used with compatible clamps, even under heavier recoil. CNC machined from 6061-T6 aluminum and finished with Type III hard anodizing, the BMLOK-60 is built for field durability, wear resistance, and long-term structural stability.

Primary function

• Converts an M-LOK handguard into a 1.5" RRS / Arca-type dovetail mounting surface
• Enables direct mounting to tripods, ball heads, and support heads using Arca/RRS-compatible clamps
• Provides a compact, semi-permanent interface for stable field support and repeatable positioning

Key features

• Compact 60mm footprint: Fits shorter mounting areas while still providing a solid dovetail interface
• Recoil-ready stability: Semi-permanent mounting design helps reduce movement under load
• Stop-screw safety: Removable stop screws help prevent accidental slide-out in compatible clamps
• Reinforced M-LOK mounting points: Designed for secure attachment and repeatable fit
• Type III hard anodized finish: Enhanced wear and corrosion resistance for field use

How to use your MLOK-60 Plate

• Tripod-supported shooting and positional stabilization
• Field hunting setups and supported observation/glassing
• Precision support systems using Arca/RRS quick-release clamps
• Compact mounting solution for short handguard real estate

Included accessories (what’s in the box)

• (1) BMLOK custom plate
• (3) Black Nitride coated alloy steel 10-24 × 9/16" screws
• (2) Stop screws
• (1) Metric 2.5mm hex key
• (1) 1/8" hex key
