Product Details

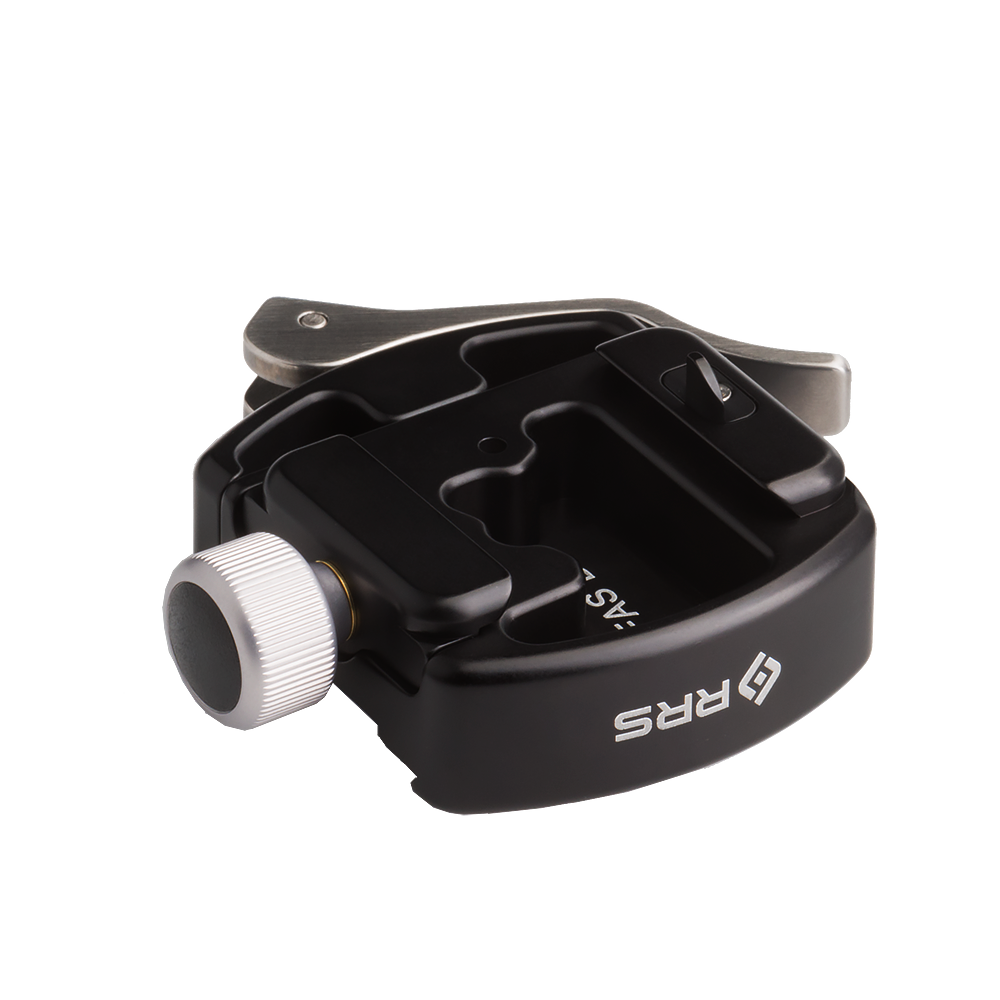

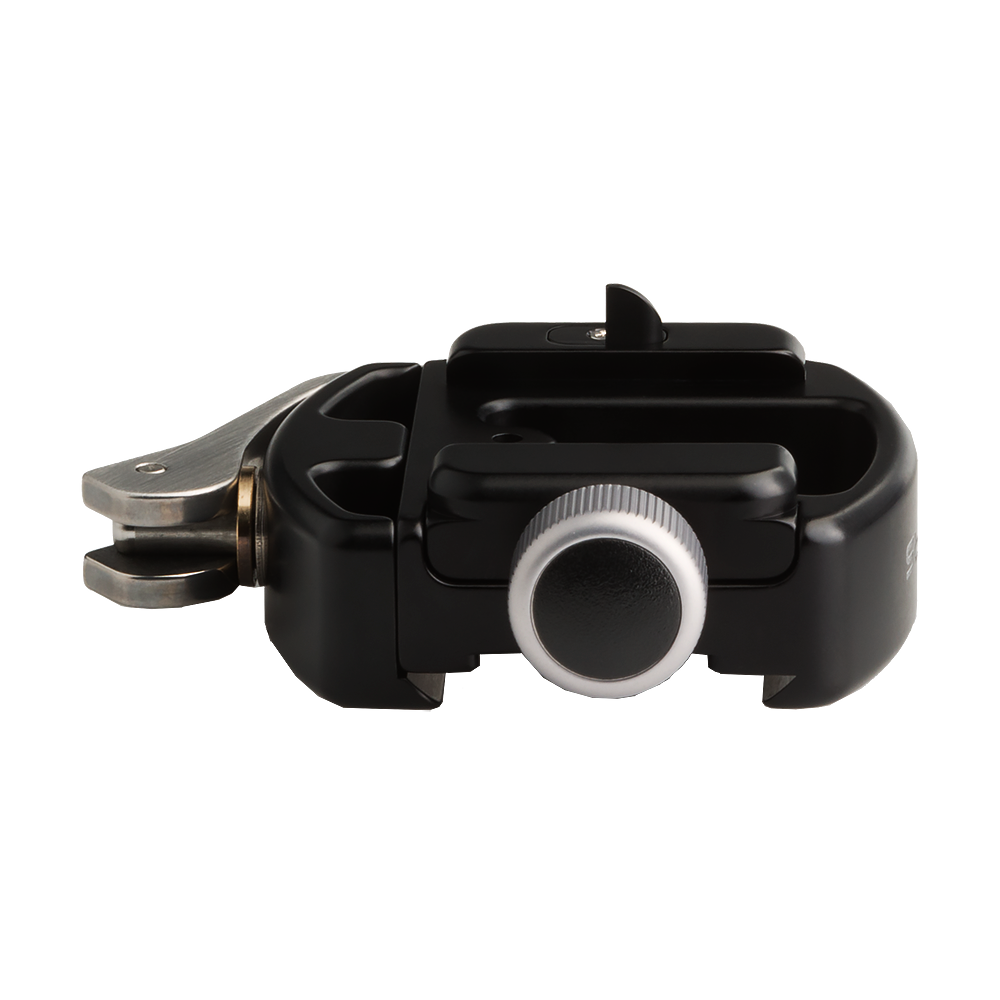

B2-FAS Fore-Aft Sliding Arca Quick-Release Lever Clamp: 60mm

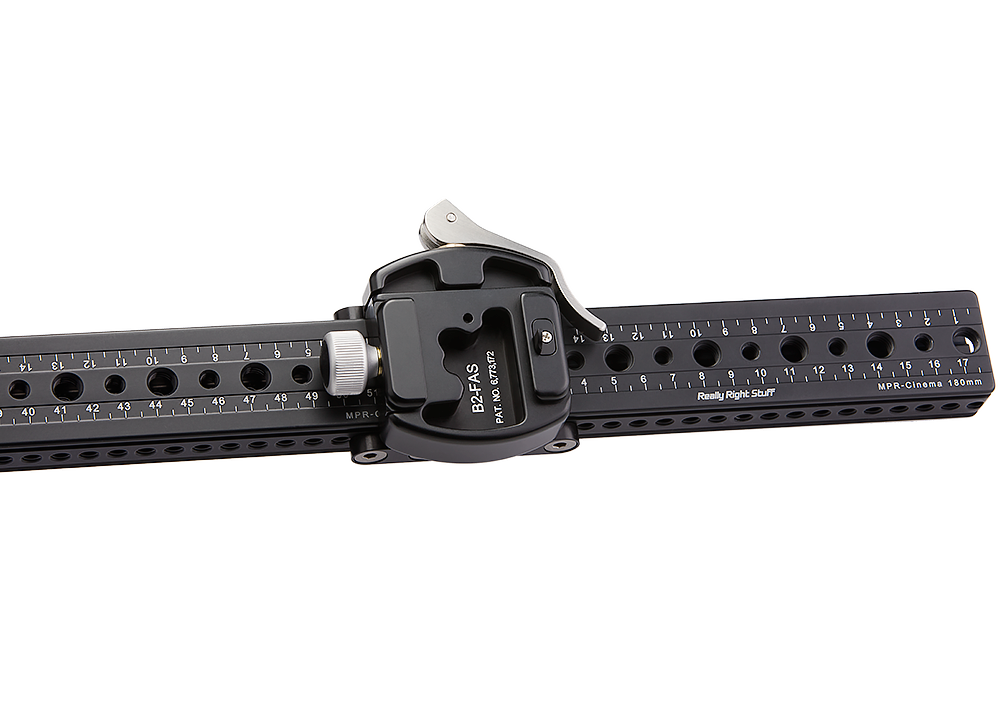

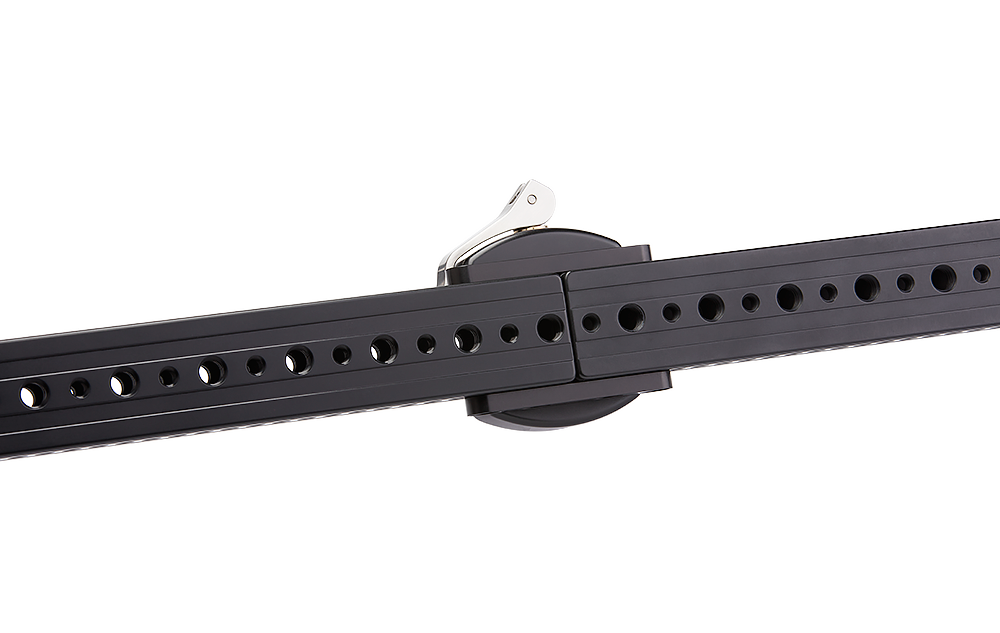

The B2-FAS clamp is a double-sided Arca quick-release clamp that can be used with any Arca-compatible multi-purpose rail or heavy-duty support bar to provide a 90-degree orienting quick-release clamp that can be repositioned anywhere along an Arca rail.
Features
⬩Fore-Aft Sliding clamp slides along the dovetail of any Really Right Stuff rail or camera bar to provide adjustable fore/aft travel.
⬩Unique bottom index marker allows for exact and repeatable positioning.
⬩Slide lock-knob allows for precise clamping anywhere along an Arca-compatible rail or bar.
⬩Clamp channel runs left/right and accommodates plates with left/right dovetail orientation (most camera body plates, but not lens plates); the clamp cannot be rotated to change orientation.
⬩Easy Top-Loading: In one quick action, the clamp can go from closed to fully open, allowing easy top-loading of Arca-Swiss-compatible quick-release camera and lens plates. No more lost shots while fumbling to feed the plates into the end of the clamp.
⬩Visual Confirmation of Lock Position: You can readily observe if the lever is locked, half-open or fully open.
⬩Low Profile: The lever does not protrude above or below the top or bottom of the clamp, and, in the closed position, the lever closely hugs the contours of the clamp. This makes it less of a "weed catcher" in the field and reduces the chance of being damaged in a fall.
⬩Less Abrasive, No Twisting: The smooth contours of the lever are less abrasive than standard knurled knobs, and for those with arthritic hands, the graceful lever cams open and closed with just finger force.
⬩Super Tough, Reliable: The Stainless Steel lever delivers a lifetime of wear and rides on a self-lubricating, wear-resistant bronze bearing surface.
⬩Delivers 50 lbs. of holding power under full compression (the fully closed position) with our plates. This is more than sufficient for any practical photographic application.

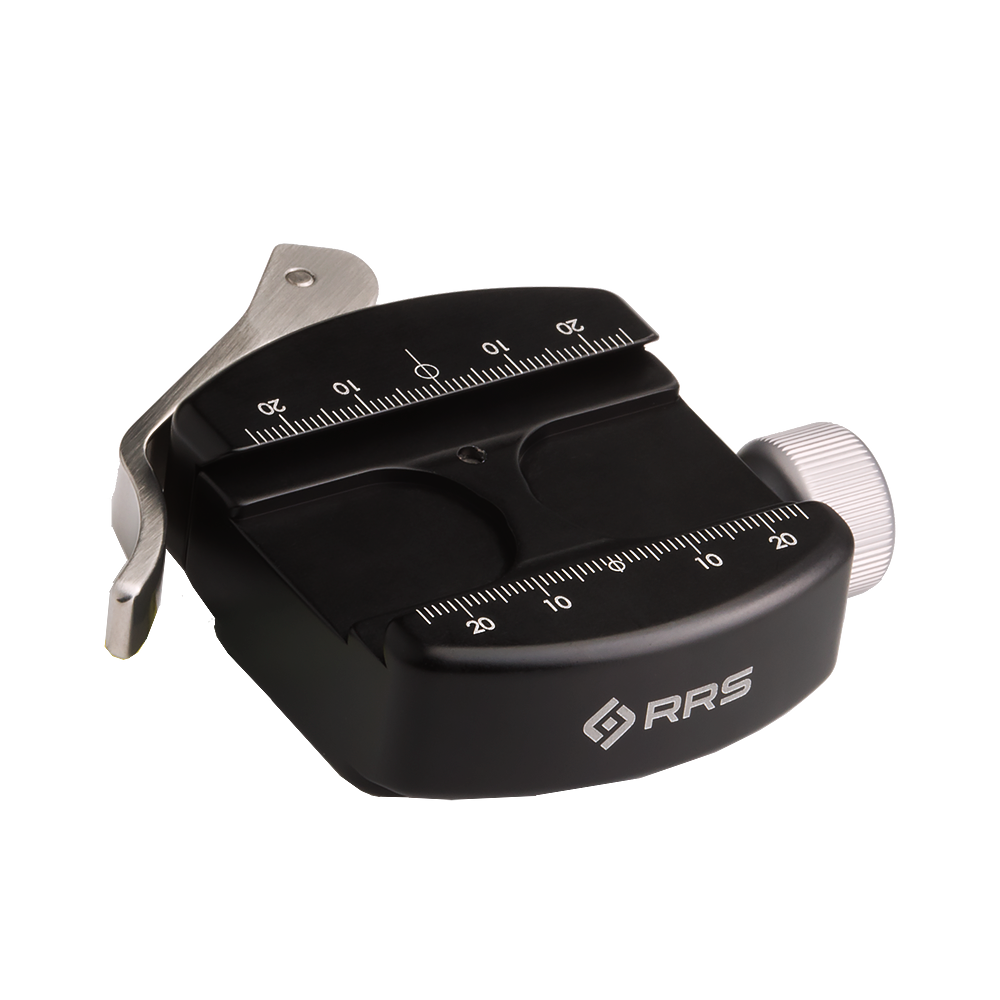

⬩Laser Engraved for precise and repeatable alignment
| Dimension | Measurement | |||||
|---|---|---|---|---|---|---|
| Jaw Length | 2.4" (60 mm) | |||||
| Width | 3.8" (97 mm) | |||||
| Height | 1.1" (28 mm) | |||||
| Weight | 7.1 oz (200 g) | |||||
| Country of Origin |  |
|||||
What's in the box?
(1) B2-FAS sliding Lever-release style quick-release clamp
(1) QR Manual Guide
B2-FAS Fore-Aft Sliding Arca Quick-Release Lever Clamp: 60mm
$160.00
