Name: MPR-CL II Nodal slide, 7.4-inch/189mm (Closeout)
SKU: MPR-CL-II
Price: 170 USD
Availability: InStock

MPR-CL II Nodal slide, 7.4-inch/189mm (Closeout)

SKU:

MPR-CL-II

UPC:

818413028098

$170.00

Product Details

Product Details

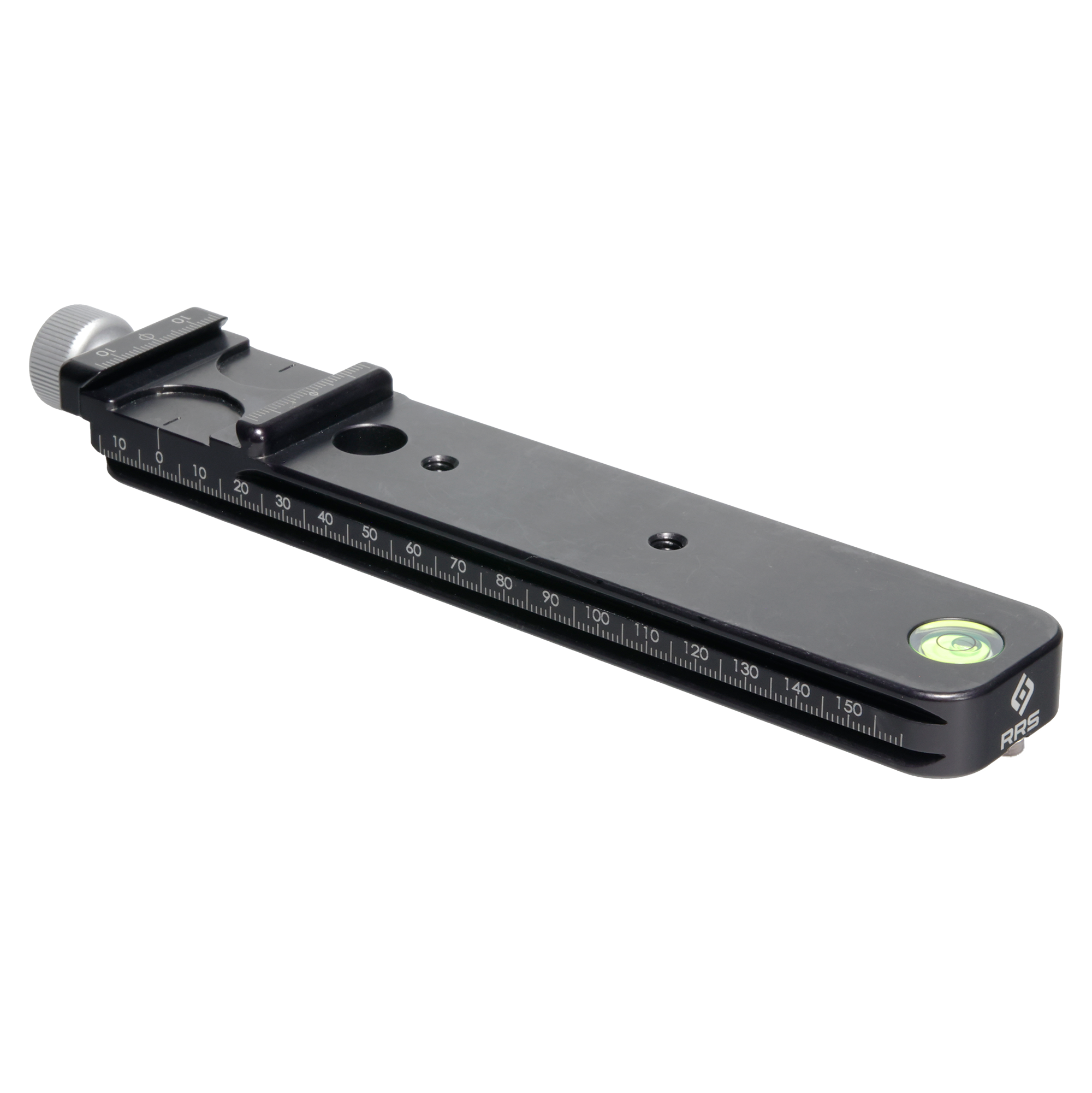

MPR-CL II Nodal slide, 7.4-inch/189mm

Capture panos with clarity

The MPR-CL II has some remaining inventory but has been discontinued and replaced by our MPR-CL III. If you are looking for a longer rail, the MPR-CL II is available while supplies last or please click here to learn about our new

Long Distance Pano Perfection

The 7.4" (189mm) rail is engineered for versatility and strength, featuring RRS-Lock incorporation and an integrated QD socket for secure and efficient attachment. Its double dovetail rail accepts Arca-Type clamps on both the top and bottom, while a laser-engraved scale in 1mm increments on both sides ensures precise and repeatable positioning of your no-parallax point. The thicker design resists bouncing and flexing, making it ideal for mounting heavier setups, and the fixed clamp readily accepts left-to-right oriented camera plates. An integrated bulls-eye spirit level helps keep your shots perfectly aligned with the horizon. Designed to serve as a nodal slide for larger cameras and non-collared lenses—or as a balancing rail on an Arca-Swiss style fluid head like the FH-7240—it also works seamlessly as a mounting rail for RRS or Wimberley flash brackets. Note: its longer profile may enter the frame when using ultra-wide or fisheye lenses.

Dimension	MPR-CL	MPR-CL II	MPR-CL III
Length	5.7" (145 mm)	7.4" (189 mm)	8" (203 mm)
Width	1.5" (38 mm)	1.5" (38 mm)	1.5" (38 mm)
Height (Not Including Knob)	0.6" (15 mm)	0.81" (20.5 mm)	0.8" (21 mm)
Height (Including Knob)	0.8" (21 mm)	0.83" (21.2 mm)	0.83" (21.2 mm)
Weight	3.0 oz (86 g)	6.1 oz (174 g)	7.2 oz (205 g)
Slot Length	-	-	3.1" (80 mm)
