Seamlessly switch orientations and expand your setup with modular versatility and rock-solid stability
Engineered for Precision, Built for Flexibility
The Leica SL3 L-Bracket is expertly designed to fit your camera with precision and care. Crafted from solid blocks of 6061-T6 aluminum, it conforms to the SL3's contours while allowing easy access to all ports and power connections. Compatible with all 1.5" standard dovetail quick-release systems, it is a versatile addition to your camera accessories. The modular design allows the base plate to convert into a full L-Bracket, accommodating various photographic needs. The Leica SL3 L-Bracket offers the flexibility to ensure seamless port access and efficient tethering. Enhance your photography experience with the Leica SL3 L-Bracket, where exceptional design meets innovative functionality.
Features
CNC machined 6061-T6 Aluminum
Anodized; Type II Black
Anti-twist pin provides extra secure fit
Laser engraved center marks
5/32" Hex key storage
Integrated Steel QD socket
Integrated hand strap boss

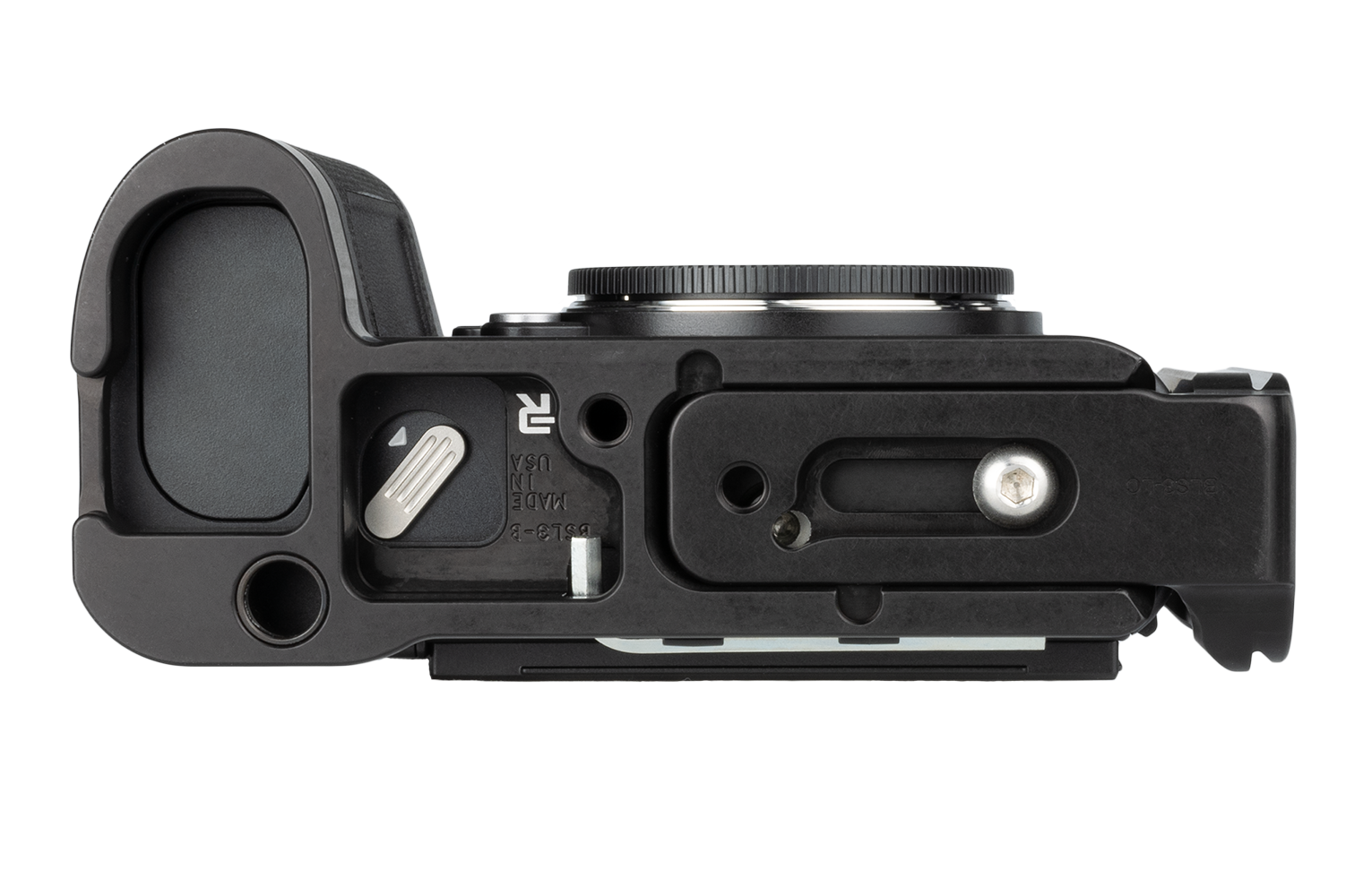

Full access to camera battery without removing plate

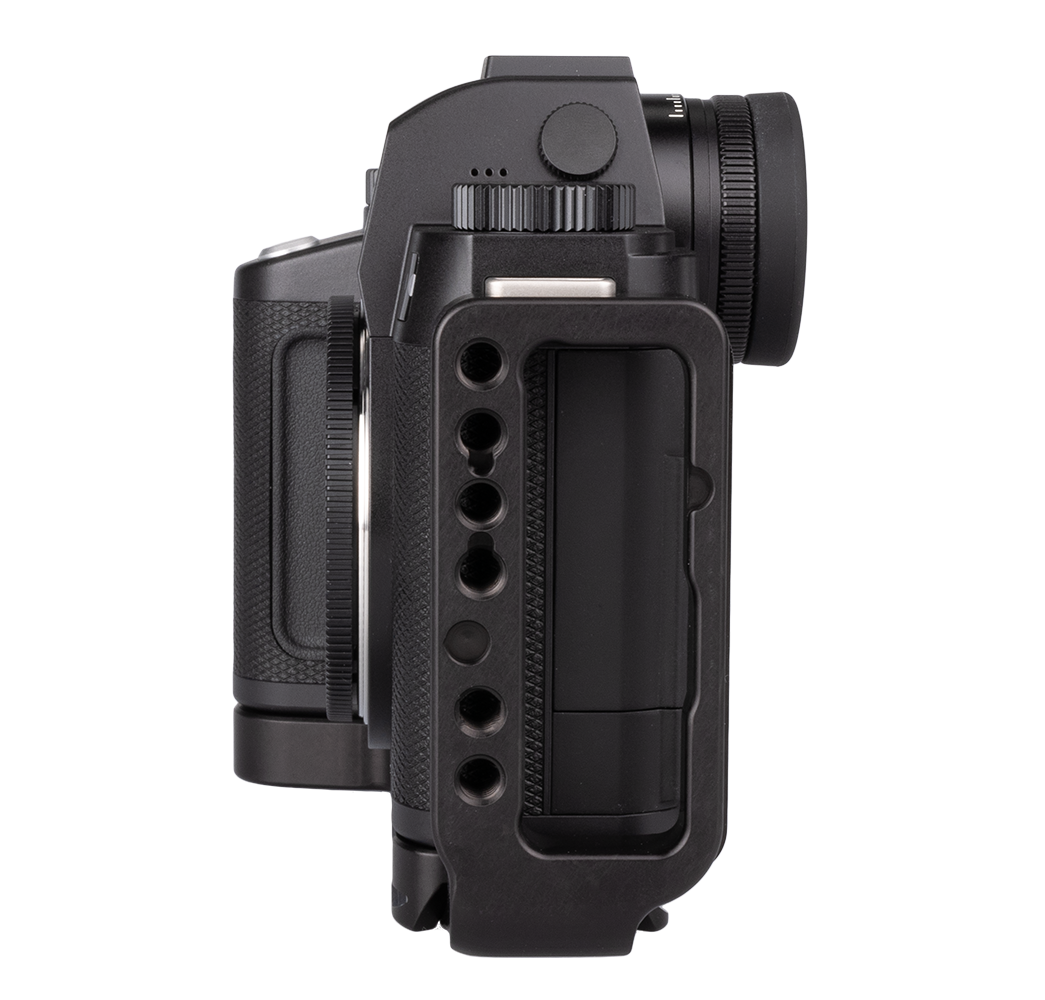

Side port doors can opened without sliding the L-Component out. Additional cable clearance with 0.9 inches of L-Component slide-out
RRS-Lock
Wrap-around grip matches camera body contours
Additional 1/4-20 mounting sockets on L-Component to attach video accessories such as external microphone
. 1x ARRI 1/4" pin-lock interface for mounting compatible accessories
Slot Length (Max. Screw-to-Screw Distance): 0.9 in. /23mm
Dimension | L-Bracket Set | Base Plate | ||||
---|---|---|---|---|---|---|
Length | 6.1in. (154 mm) | 5.4in. (137 mm) | ||||
Width | 2.7in. (68 mm) | 2.7in. (68 mm) | ||||
Height | 3.5in. (88 mm) | .5in. (12 mm) | ||||
Weight | 6.1oz (172 g) | 3.5oz (100 g) | ||||
Country of Origin | ![]() |

Leica SL3 Camera Plate L-Bracket
